weinor PergoTex II

The pergola awning

Enjoy the outdoor life. Whatever the weather!

Protection against the wind, rain and UV-rays – but also a great feeling of fresh air: The pergola awning weinor PergoTex II. If you would like to enjoy the sun, just push a button – and the fabric opens out. If the weather gets bad, just close the foldable awning again. You are protected from the rain in no time – without leaving your patio.

At a glance

Checkmark

Cabrio system

Checkmark

Protection against strong rain from 8° pitch

Checkmark

integrated HighPower LED-spots

Checkmark

Extendable with lateral all-glass elements

Checkmark

Width x projection (max.): 7 m x 6.5 m

Checkmark

PVC-coated pergola fabrics and 200 frame colours to choose from

Product-Highlights

Cabrio folding system

The weinor PergoTex II Cabrio-Folding System is rain-proof, wind stable and completely retractable.

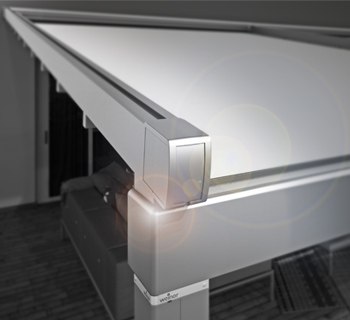

Integrated drainage

Controlled water flow-off from the aluminium fabric protection roof laterally over the transport profile in the large gutter in the front area.

HighPower LED-spots – for an amazingly beautiful atmosphere

By request, dimmable HighPower LED-single spots can be integrated into the horizontal rails.

New high-value aluminium protective roof

Aluminium fabric protective roof as a chamber profile noise dampening during rain.

Variable water expulsion

The two-part implementation of the post makes possible the individual adaptation of the height of the water expulsion during the onsite assembly.

Modular system

Extension and retrofitting, e.g. with all-glass substructure elements and vertical awnings is very easy with PergoTex II.

Supporting Wall Connection Frame

The Supporting Wall Connection Frame ensures the reliable installation of weinor PergoTex II on difficult facades such as timber-framed, brick or plaster facades with thermal insulation and relieves the load on your house wall thanks to the crossbeam and the support posts.

Elegant design faceplate

The VertiPlus design faceplate ensures harmonious integration of the VertiTex II vertical awning into the pergola awning construction.

For high winds

The weinor PergoTex II excels due to its high wind resistance. It consequently copes easily with winds up to force 11 on the Beaufort scale.
Background

How to find matching accessories

As a weinor retailer, we provide comprehensive advice and bring your desired product to your home. We look forward to serving you!
1 Select your dream model.
2 Arrange an appointment! with a retailer
3 Purchase and installation via the retailer
YOUR
WEINOR
RETAILER

Comprehensive expert advice fully in keeping with your wishes and ideas.

Precisely tailored on-site planning with prepared costs and deadlines.

Safe installation by your trained weinor retailer.

Top support and competent service, also post-purchase.

weinor PergoTex II Picture Gallery

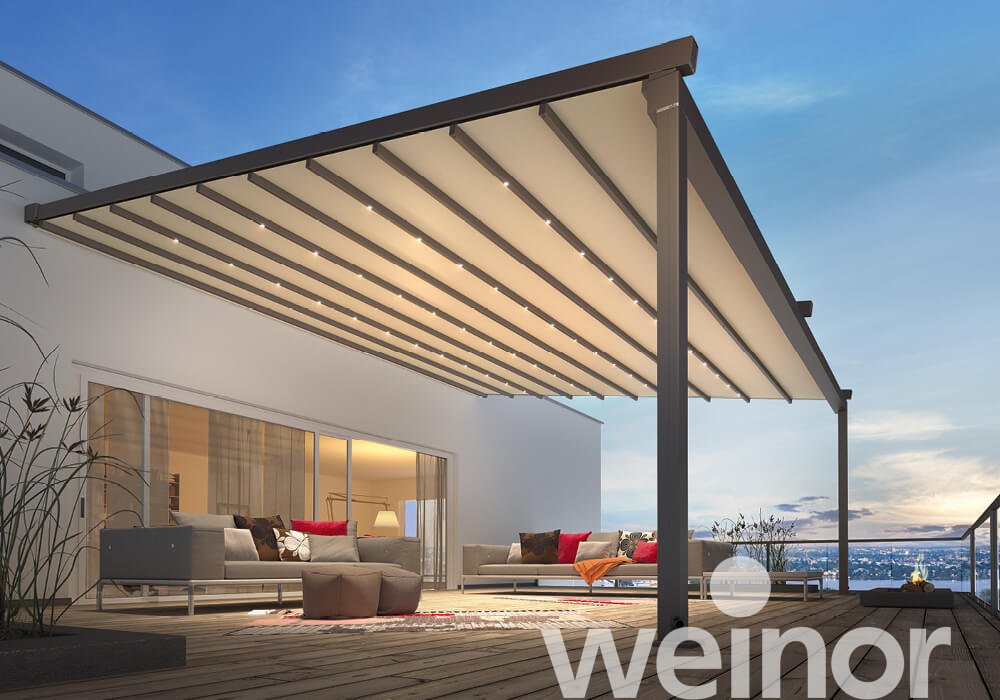

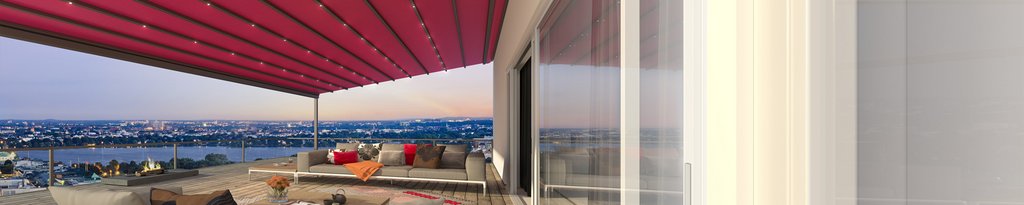

Pergola awning weinor PergoTex II
reddot award 2016 weinor PergoTex II
Pergola awning weinor PergoTex II VertiPlus
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II
Label D‘Or weinor PergoTex II
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II
Supporting Wall Connection Frame and weinor PergoTex II
Reference page
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II VertiPlus
M+T Produkt des Jahres 2016 weinor PergoTex
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II
Pergola awning weinor PergoTex II VertiPlus
Pergola awning weinor PergoTex II

Product data

weinor PergoTex II

max. width 1 field (single installation) 7 m
max. width 2 fields (row installation) 14 m
max. projection 6.5 m
Wind protection, tested up to Wind force 11 (Beaufort)
Rain protection from 8°
Roof pitch 0° to 25°
Installation options Wall mounting
Motor drive as standard

weinor PergoTex II Basic

max. width 1 field (single installation) 7 m
max. width 2 fields (row installation) 14 m
max. projection 6.5 m
Wind protection, tested up to Wind force 11 (Beaufort)
Rain protection from 8° roof pitch
Roof pitch 0° to 25°
Installation options under existing pergola, on existing wall, between 2 walls up to 4,5 m width (option, additional mounting brackets necessary)
Motor drive as standard

weinor PergoTex II / LED: Good to know before you buy!

Benefit from the experience of our weinor retailers – up-to-date, professional and practical!

What to do when it's freezing?
Chevron Down

It is better not to operate the pergola awning in frosty conditions to prevent damaging any frozen components. However, if this is necessary in practice: it is better to keep an eye on the system! So you can stop quickly if something is frozen and prevent any damage. Our tip: Switch off the weather sensors on your product in frosty conditions to prevent it retracting and extending when you are not at home.

And in windy conditions?
Chevron Down

Pergola awnings can also withstand higher wind speeds (please see the product data for details). Despite this, it is better to retract the awning before strong winds develop and keep it closed. This reduces the risk of your pergola awning being damaged by strong gusts of wind. If you supplement your system with a wind sensor, it will do this job for you.

Works from a pitch of 8°
Chevron Down

The weinor PergoTex II pergola awning can be used as reliable rain protection from a pitch of 8°, even in a heavy downpour. If the pitch is less than 8* the fabric serves exclusively as sun protection. The reason: due to the low pitch, the water runs off uncontrollably to the side or accumulates on the fabric. This may result in water pockets which can permanently deform the fabric.

Quiet but not silent
Chevron Down

What one person finds loud and disturbing is barely perceptible to another. This also applies to the creaking noises your product makes. When the temperature changes, your pergola awning’s material expands or contracts – a natural process that cannot be avoided. Noise also occurs when retracting and extending the awning, which can be louder or quieter depending on the building situation. In any case, the creaking and running noises do not affect your pergola awning’s functionality.

Keeping an eye on the product
Chevron Down

You should take a closer look at your pergola awning every now and then: does everything look good and is it all firmly in place? If you notice anything wrong, contact your retailer for maintenance. It is advisable to clean your construction at least once a year, or even twice a year in the case of heavy use. Please refer to our “10 tips on awning fabrics” brochure for this.
Our tip: If you are not at home for a longer period of time, retract your pergola awning and simply switch the automatic system to “OFF”. This will avoid the awning from being retracted and extended unsupervised.

The awning that grows with you
Chevron Down

If, after installing your pergola awning, you find that you would like to have even more comfort after all, additional products are available within weinor’s modular system and are easy to retro fit. Whether it is an automatic weather system, a heating system, lighting, a new fabric or vertical sun protection – everything fits perfectly together. The additional options do of course have technical limits. Fortunately, these are just exceptions, which we are working on …

Reliably weather sensitive
Chevron Down

Even if you don't have your awning in sight, weather sensors ensure that your radio-controlled awning can automatically extend when the sun is shining and retracts again when it is windy. As a result, the climate on the patio and indoors remains more pleasant. The risk of water or storm damage to your product can be reduced with the right sensor.

Compensating joints
Chevron Down

For a pergola-awning to work properly, all the components must work together in harmony. Even minor unevenness on the house wall can mean that awnings do not run as smoothly as they should. weinor pergola awnings react to the condition of the installation surface and compensate for this if necessary. The joints that then appear do not have a negative effect on your awning’s function though – quite the opposite!

Download

Downloads

Downloads

Cabriolet feeling – weinor PergoTex II

Protection against the wind, rain and UV-rays – but also a great feeling of fresh air: The weinor pergola awning PergoTex II.
Type: PDF
Size: 2 MB
Downloads

Alfresco Comfort & Luxury – weinor accessories for sun and weather protection

Make your time on the balcony or patio even more pleasant with intelligent accessories from weinor.
Type: PDF
Size: 4 MB

Radio and colours should be included

The right control unit for all needs

With the control units from weinor or Somfy, you can comfortably operate lighting and heating.

Pergona® – robust and waterproof

The tear-resistant PVC fabrics are water resistant. They are available in opaque and translucent versions.

Huge range of frame colours

Choose your favourite from over 200 colour shades. weinor powder coating ensures premium quality.

This is how your weinor product looks at your home

Our weinor configurator

Design your dream patio playfully

Upload photos of your patio

With shadow casting simulation

Our weinor configurator

No matter whether an awning, a patio roof or Glasoase® – you can design your new dream patio playfully whilst experiencing an impressive multitude of options.

weinor visualisation
weinor visualisation

Based on your actual photos, the professional weinor visualisation service designers prepare a photorealistic depiction of your desired weinor model on your house for you.

Echtheitszertifikat Logo

weinor certificate of authenticity -
an original product with certainty

Every weinor product has been delivered with a certificate of authenticity since January 2018.
Ask your retailer for it!

Eye

Now see the Product live

Find a weinor retailer showroom near you now.

High quality awnings for every preference.
Here you find the complete Weinor awning portfolio

Start search

Frequently bought together

Tempura / Tempura Quadra heating system

Extend your precious time on the patio with the weinor Tempura heating systems, whenever you want.

VertiTex II

The perfect privacy and anti-glare protection. If you also want to enjoy the view outside, then our see-through fabrics are the ideal choice.

Glass wall elements

Light-filled elegance with optional all-glass elements.

Please note:
We reserve the right to make technical changes as well as changes in range and product portfolio.
The weinor product range can vary from one country to the next.
All the illustrated equipment is weatherproof outdoor furniture and accessories.
