w17 easy

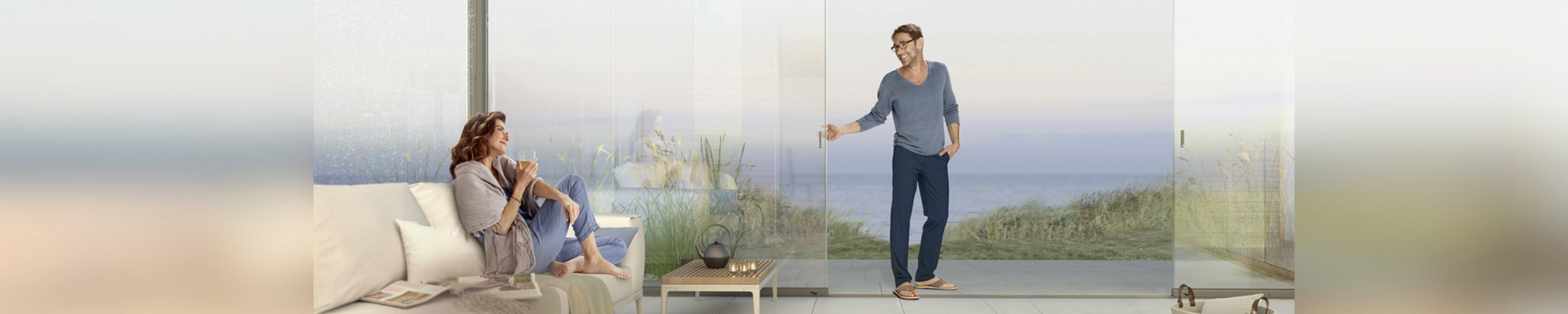

The full glass sliding door

Whether you want it protected and cosy or fresh and airy, with the w17 easy full glass sliding door you experience pure living enjoyment – on your patio. w17 easy offers reliable weather protection and thanks to the frameless design you always enjoy full transparency. The full glass elements can be moved very easily and without a lot of effort. Opening and closing thus becomes child's play. You cannot extend your precious hours on your patio more easily than with w17 easy!

At a glance

Checkmark

Soft-Sliding-System

Checkmark

Perfect transitions, also barrier-free

Checkmark

Elegant handle and lock versions

Checkmark

CleanCase® for easy cleaning

Checkmark

Useful for all patio roofs

Product-Highlights

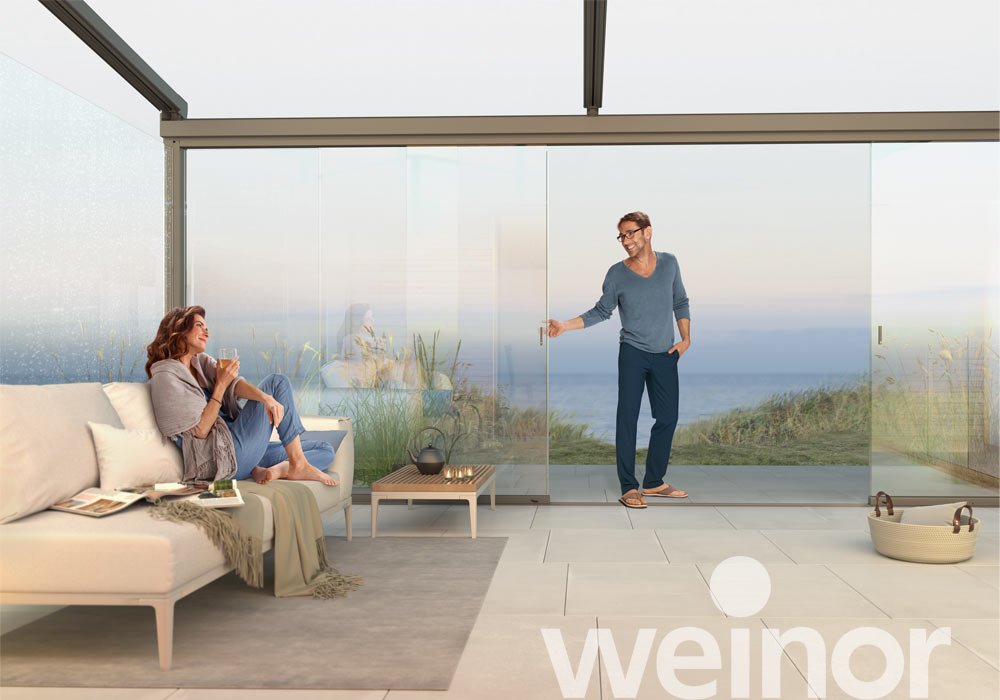

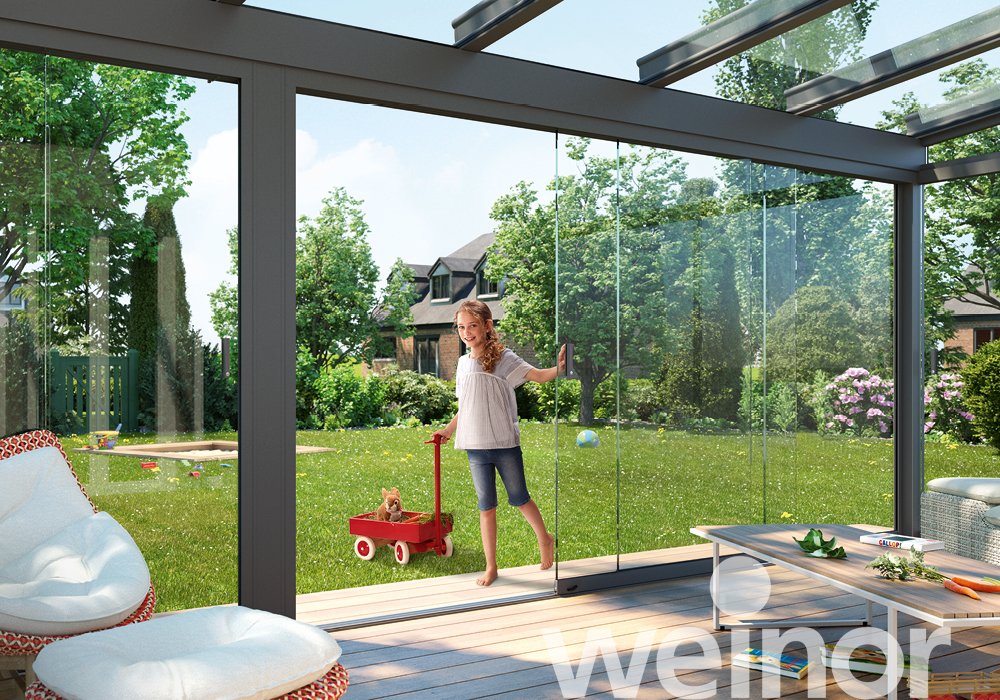

Full transparency

The frameless, mobile glass elements of w17 easy allow full transparency at all times for an unobstructed view from the patio.

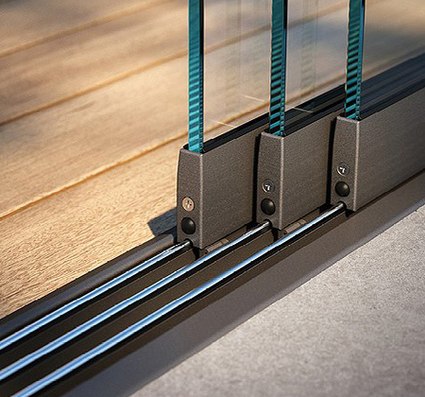

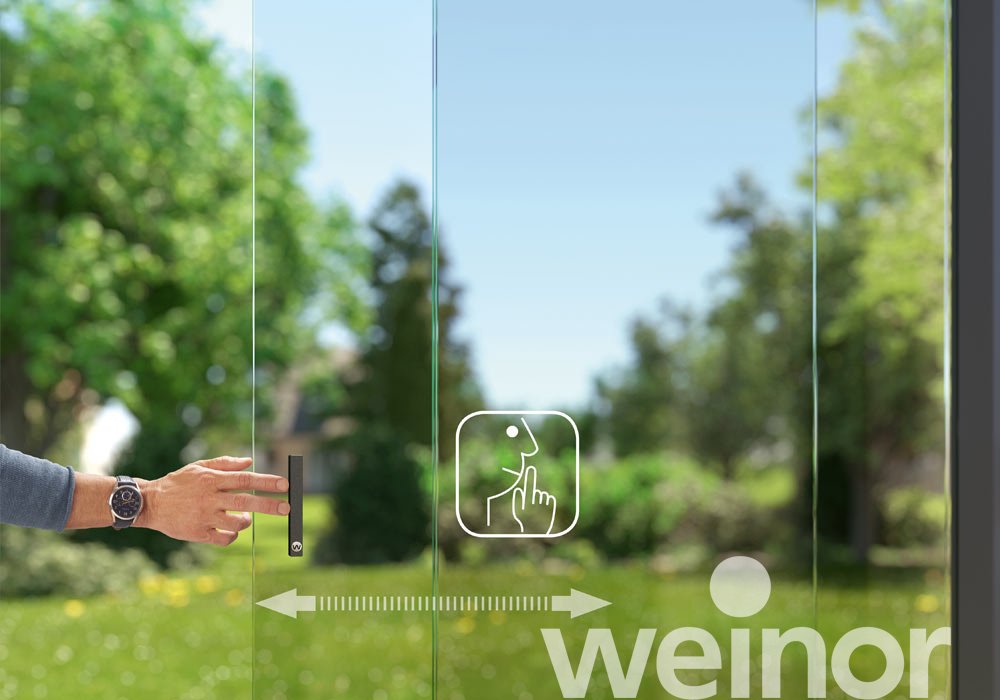

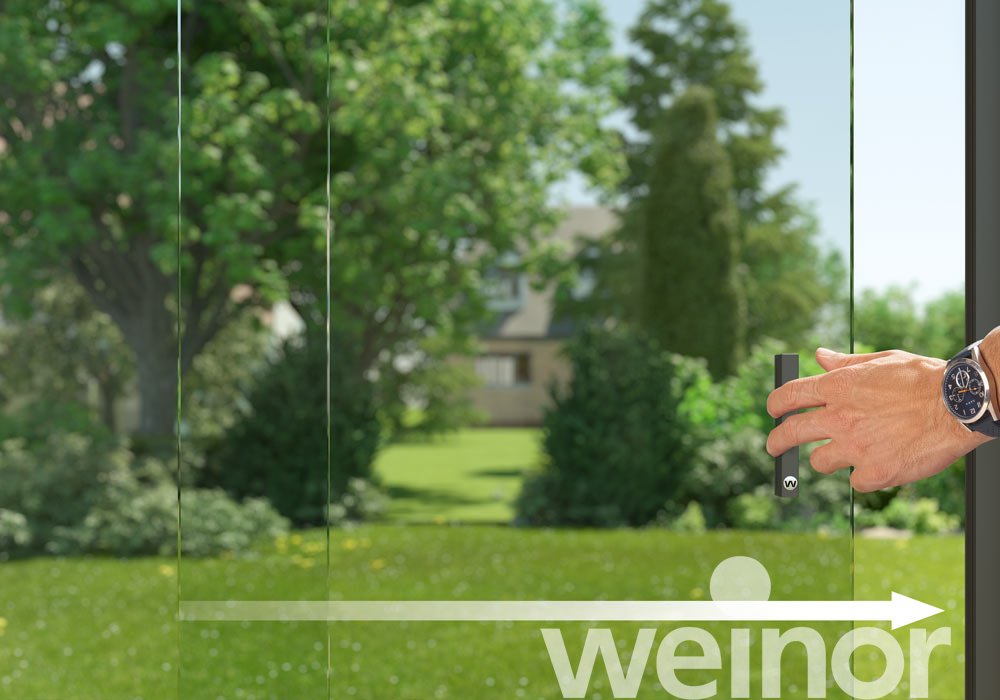

Soft-Sliding-System

Thanks to the Soft-Sliding-System, the glass elements can be moved quietly and easily.

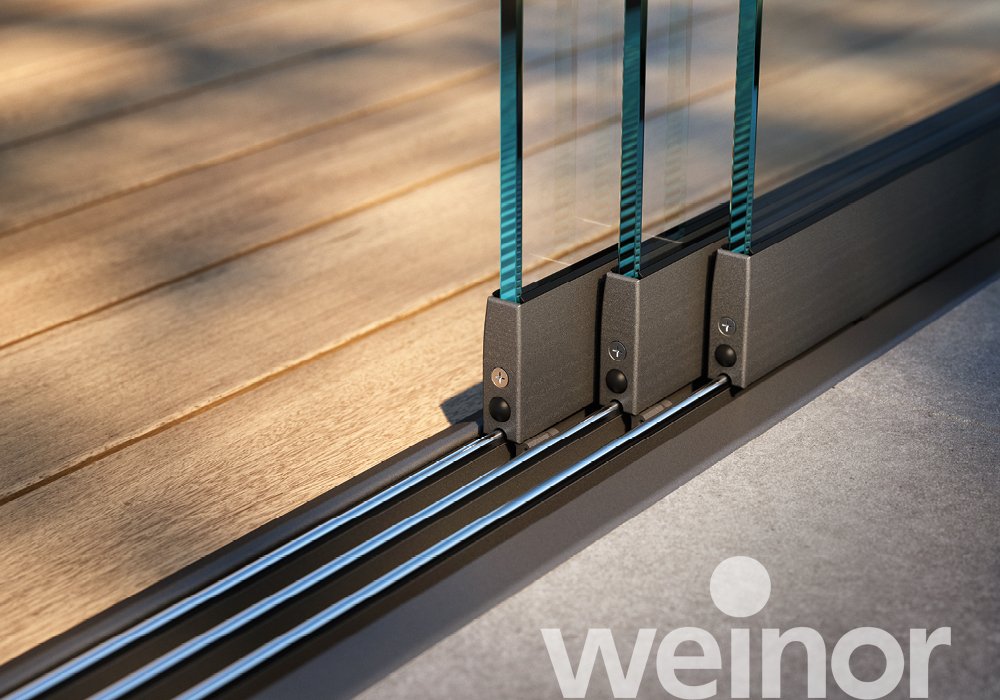

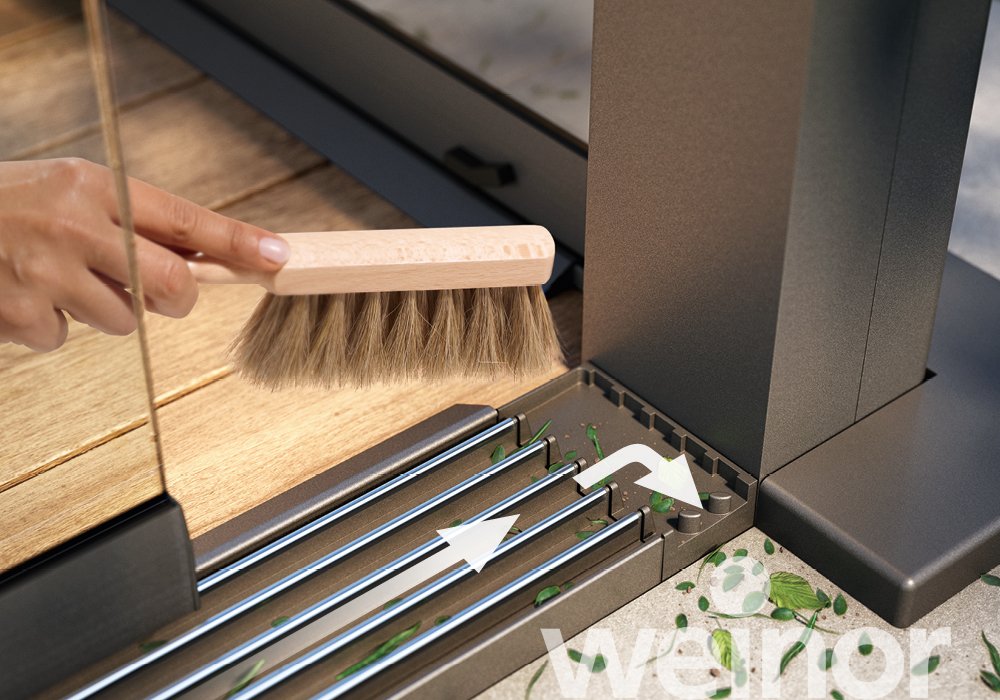

Easy cleaning using CleanCase®

The floor rail serves as a guide for the glass elements. Here, leaves and dirt can collect from outside. Using a broom, the dirt can simply be swept into the CleanCase® and the outside. Even rainwater runs off over the CleanCase®.

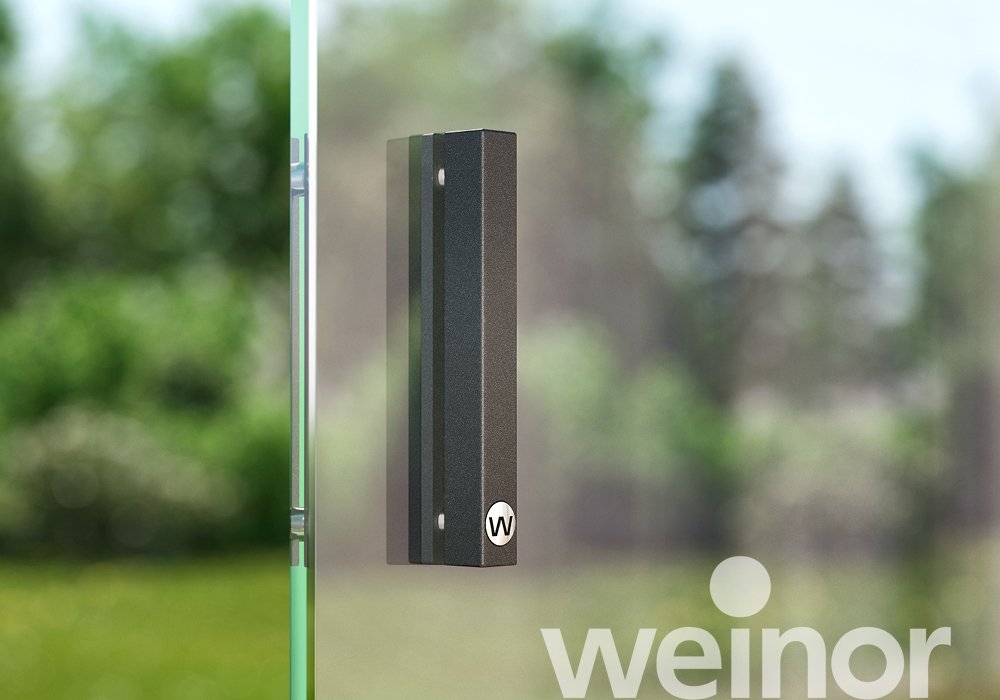

Elegant handle and lock versions

The design of the handles, profiles and lock is based on the trend of clear lines and screwless look. All components can be coated in any of a choice of 50 standard colours as well as 150 other RAL colours.

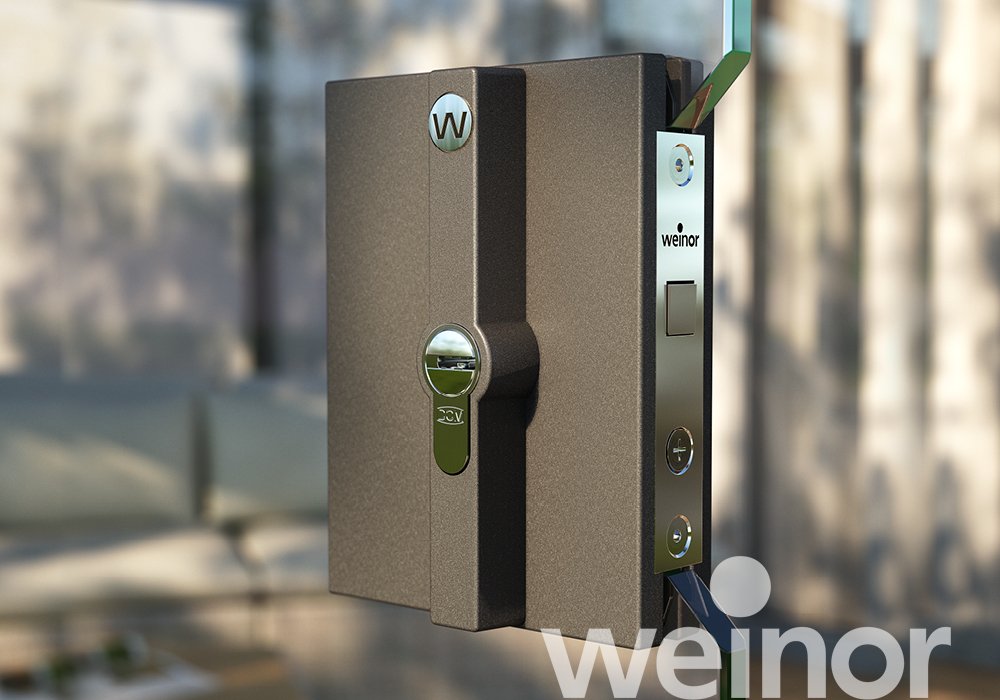

Lockable patio

With the lockcase and hung bolt, the w17 easy can be locked easily from the inside. A version that can be locked from the inside and the outside is also available on request.

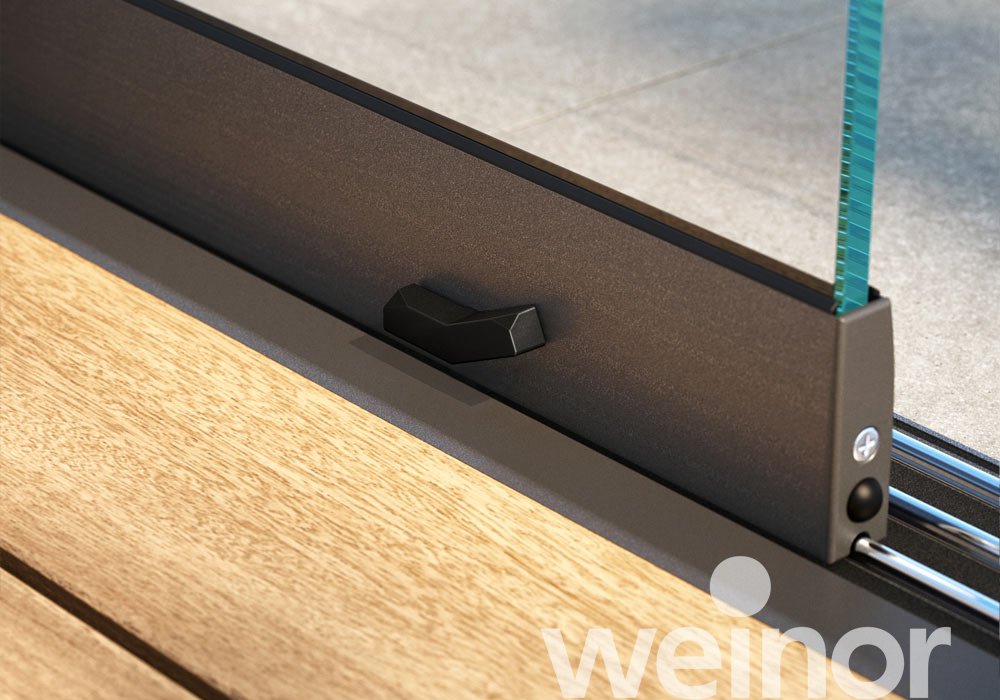

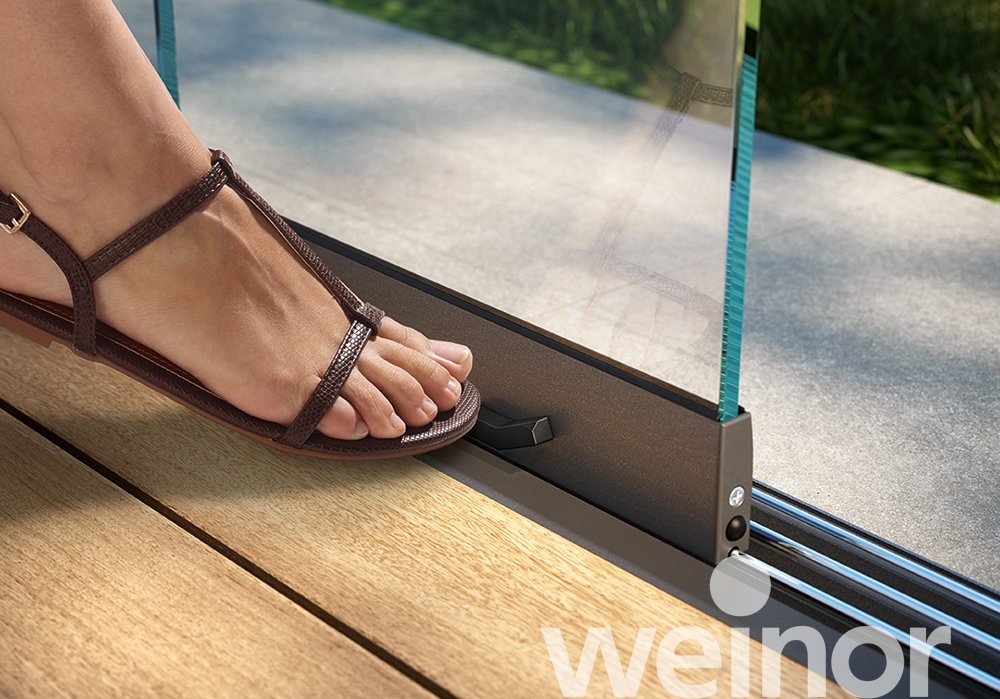

Comfortable locking mechanism

weinor has developed simple and robust interlocking so that the completely closed glass leaves remain reliably in the required position. Slight pressure with your foot is all it takes to securely lock the w17 easy and open again.

Flat floor rail

In addition to the higher standard floor rail with weinor CleanCase®, a flat version can also be chosen, perfect for accessibility. It is so low that it almost presents no obstacle in transitions. Elegant floor connection profiles that go well with any flooring ensure a nice transition between the floor rail and the patio floor.

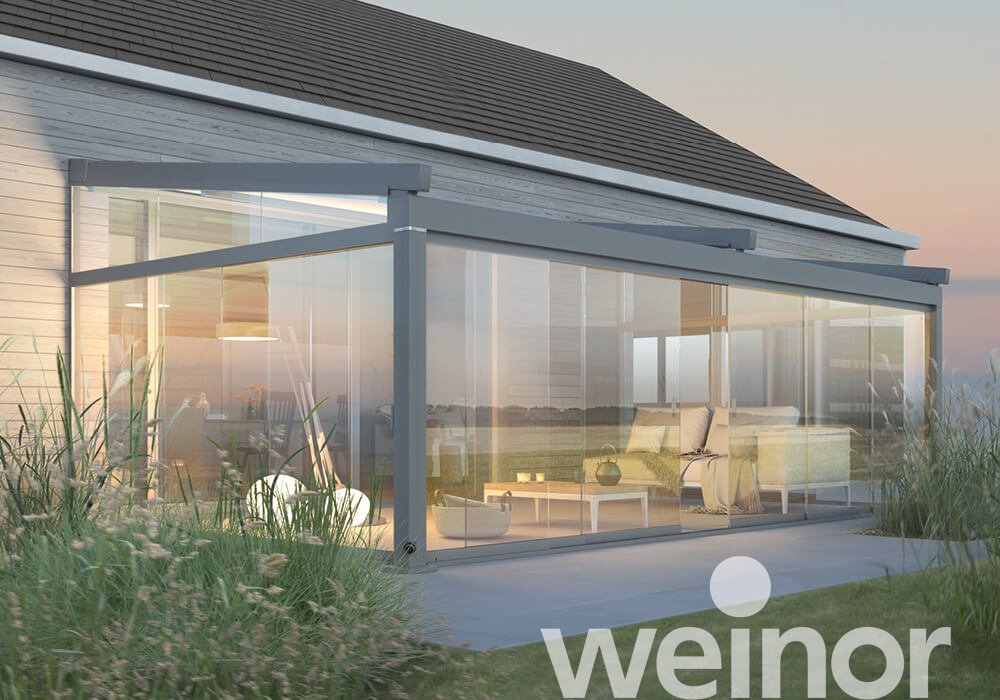

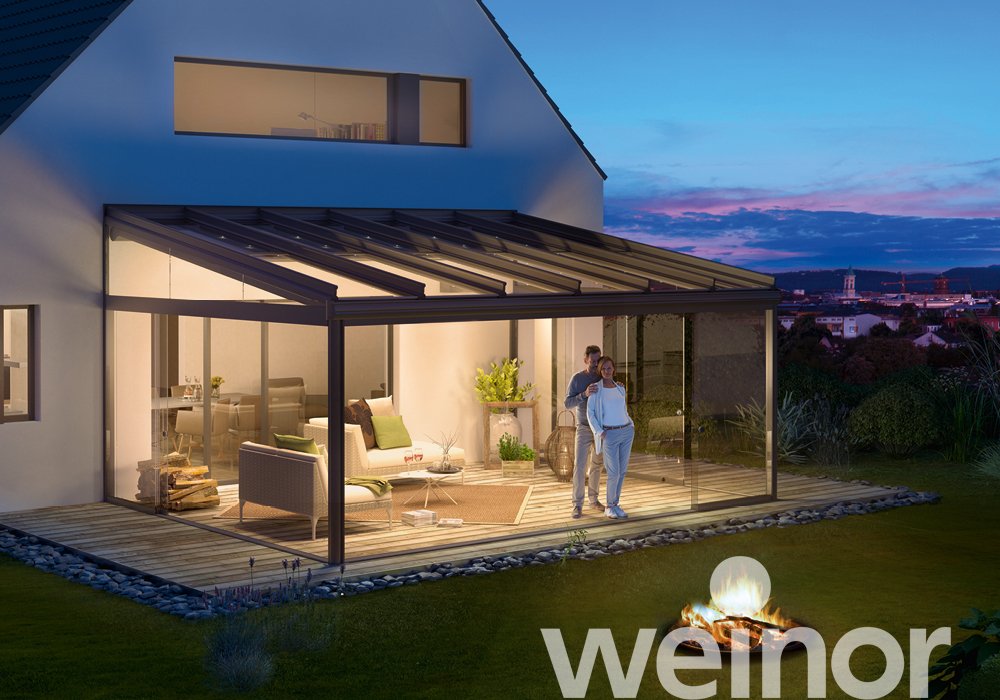

Fits under almost any patio roof

w17 easy is suitable as a substructure for practically all types of roofs. Thanks to the "standing design", retrofitting does not entail any extra costs for static adjustments of the patio roof or the Pergola awning.

Discover the advantages of the weinor full glass sliding door w 17 easy.

Background

How to find matching accessories

As a weinor retailer, we provide comprehensive advice and bring your desired product to your home. We look forward to serving you!
1 Select your dream model.
2 Arrange an appointment! with a retailer
3 Purchase and installation via the retailer
YOUR
WEINOR
RETAILER

Comprehensive expert advice fully in keeping with your wishes and ideas.

Precisely tailored on-site planning with prepared costs and deadlines.

Safe installation by your trained weinor retailer.

Top support and competent service, also post-purchase.

w17 easy image gallery

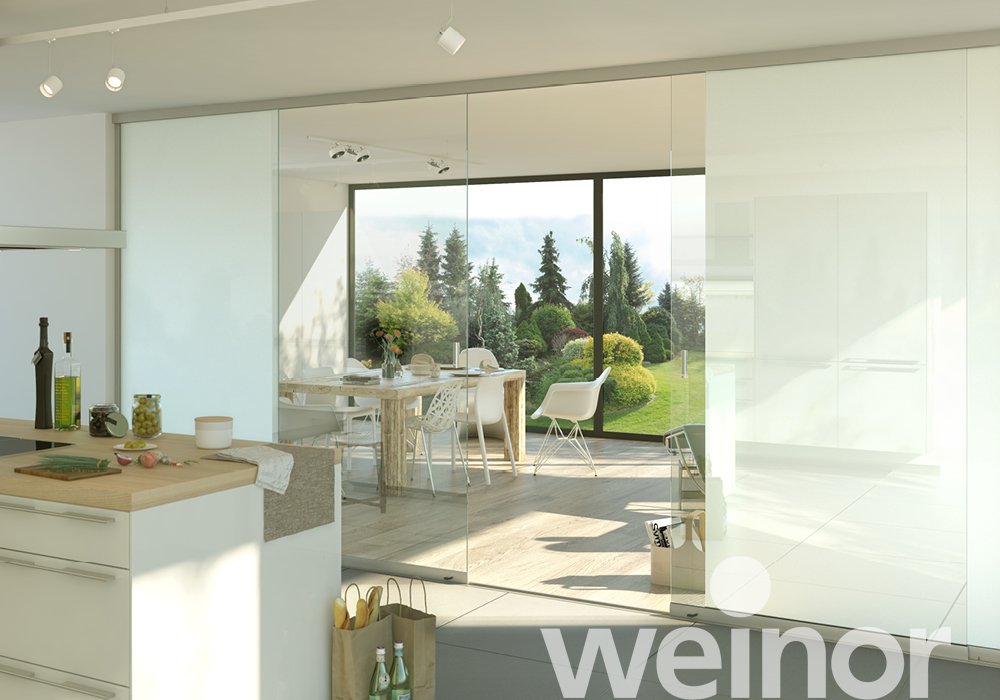

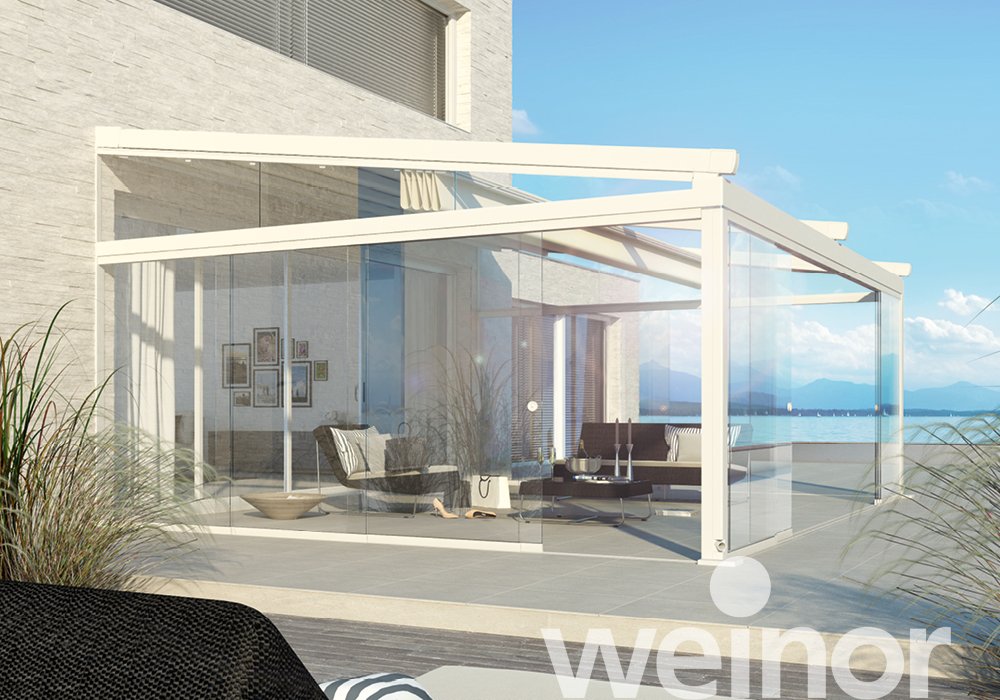

weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
M+T Produkt des Jahres 2017 weinor w17
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
Good Form Award weinor w17 easy
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
reddot winner 2017 weinor w17 easy
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
Reference page
weinor w17 easy full glass sliding door
IF Design Award 2018 weinor w17 easy
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
German Design Award Winner 2018 weinor
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door
weinor w17 easy full glass sliding door

How the w17 easy works

The weinor full glass sliding door is not available off the shelf. Rather, it is adapted on an individual basis by your retailer – with many options, in numerous sizes. It can also be integrated subsequently without any problem.

Single system

Opens on one or two sides, closes on the left and/or right.

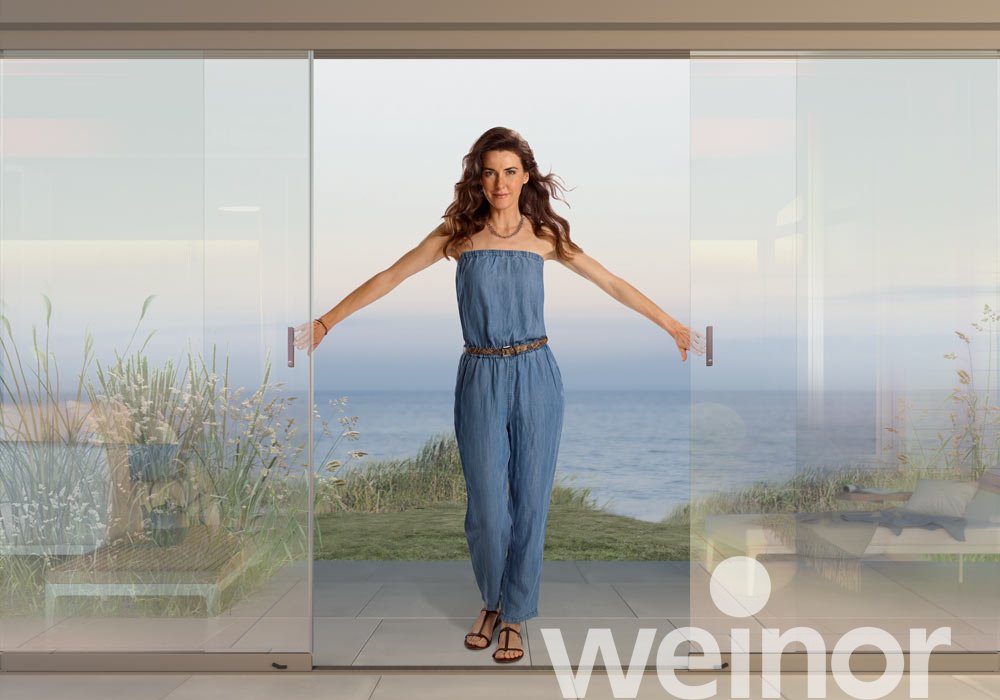

Lockplate version

Opens on two sides, closes in the middle.

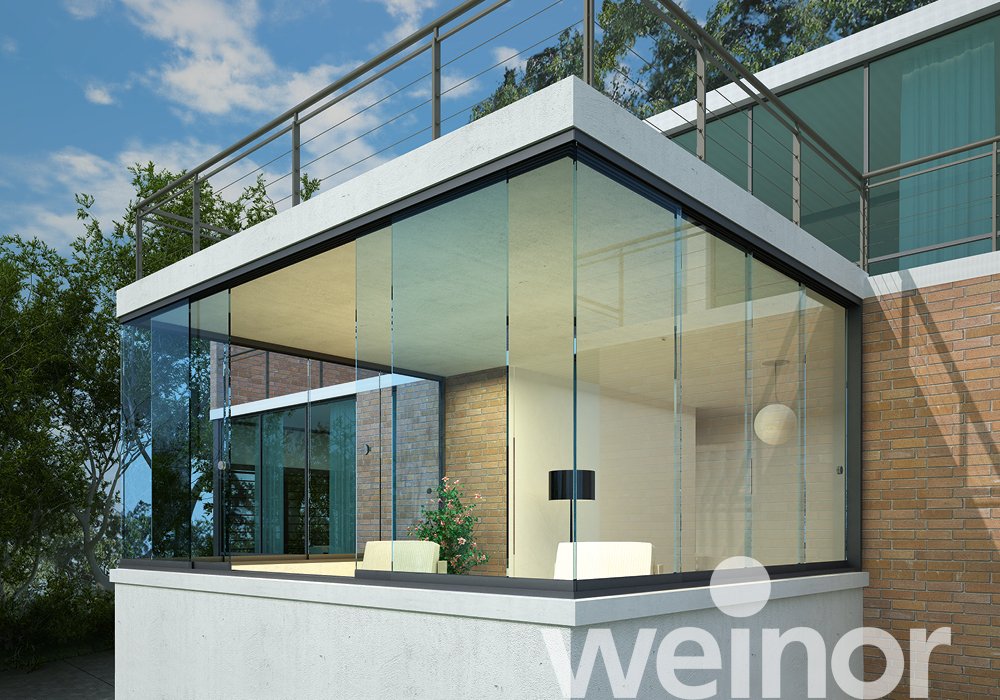

Corner unit

Frameless full-glass corner, e.g. for balconies or loggias.

Product data

w17 easy full glass sliding door Single system
max. width of system 6.6 m
max. height of system* 2.8 m
Number of leaves 2 to 5
Guide rail type 2-track to 5-track
Opening type Parallel-sliding
Type of glass (single-pane safety glass) 6, 8 or 10 mm
Height compensation in the upper rail Standard: 0 mm/-25 mm
Wall gap sealing profile Option
Brushes and gap seals Option
Soft-Sliding-System Standard
Corner unit 90°

*increased requirements with restrictions possible as of a 2.4 m system height

w17 easy full glass sliding door Lockplate version
max. width of system 10 m
max. height of system* 2.8 m
Number of leaves 4 to 10
Guide rail type 2-track to 5-track
Opening type Parallel-sliding
Type of glass (single-pane safety glass) 6, 8 or 10 mm
Height compensation in the upper rail Standard: 0 mm/-25 mm
Wall gap sealing profile Option
Brushes and gap seals Option
Soft-Sliding-System Standard
Corner unit 90°
Download

Downloads

Downloads

w17 easy – living al fresco

With the frameless w17 easy full glass sliding door, you always experience pure living enjoyment – on your patio.
Type: PDF
Size: 2 MB
Downloads

Outside home – Your new transparent garden space

Garden enjoyment well into autumn. You can enjoy life al fresco with the patio roof, Glasoase and sun protection from weinor.
Type: PDF
Size: 6 MB
Downloads

Alfresco Comfort & Luxury – weinor accessories for sun and weather protection

Make your time on the balcony or patio even more pleasant with intelligent accessories from weinor.
Type: PDF
Size: 4 MB

This is how your weinor product looks at your home

Our weinor configurator

Design your dream patio playfully

Upload photos of your patio

With shadow casting simulation

Our weinor configurator

No matter whether an awning, a patio roof or Glasoase® – you can design your new dream patio playfully whilst experiencing an impressive multitude of options.

weinor visualisation
weinor visualisation

Based on your actual photos, the professional weinor visualisation service designers prepare a photorealistic depiction of your desired weinor model on your house for you.

Echtheitszertifikat Logo

weinor certificate of authenticity -
an original product with certainty

Every weinor product has been delivered with a certificate of authenticity since January 2018.
Ask your retailer for it!

Eye

Now see the Product live

Find a weinor retailer showroom near you now.

High quality awnings for every preference.
Here you find the complete Weinor awning portfolio

Start search

Matching side glazing – tailored to your needs and wishes

Maximum transparency: Side element SUPER LITE

With the fixed glazing below the Terrazza side roof support, fully-transparent fronts can be pulled in – with a single vertical or horizontal strut being required.

Supplements folding and sliding wall: Side element LITE

lightweight fixed glazing at the top of the trapezium, with a weinor easy-glide sliding wall underneath, or a multi-function folding partition – this is a very popular combination and a great choice!

Highest possible stability: Side element CLASSIC

Or go for sturdy fixed glazing at the top of the trapezium, with a multi-function sliding wall below – or even framed fixed glazing to hold off strong side winds if you prefer.

Fixed glazed window, pivot-tilt window w50-c

The window produced from aluminium profiles w50-c offers you a wide variety of possibilities. Fixed glazed or as turn and/or tilt window, it can be wonderfully combined with the patio roof Terrazza.



Door w50-c

The doors w50-c open up to allow you a direct view into nature from your extended patio roof. The double-sided door handles and a barrier-free threshold mean you can get back inside quickly if the weather turns bad. The aluminum doors can be used as room-dividers or as a side-entrance door in your house.

Retrofittable – for virtually every patio roof

The all-glass elements from weinor fit under practically every patio roof.

Frequently bought together

Tempura / Tempura Quadra heating system

Extend your precious time on the patio with the weinor Tempura heating systems, whenever you want.

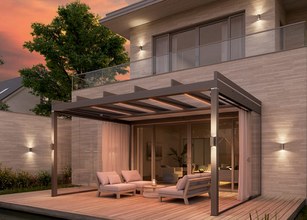

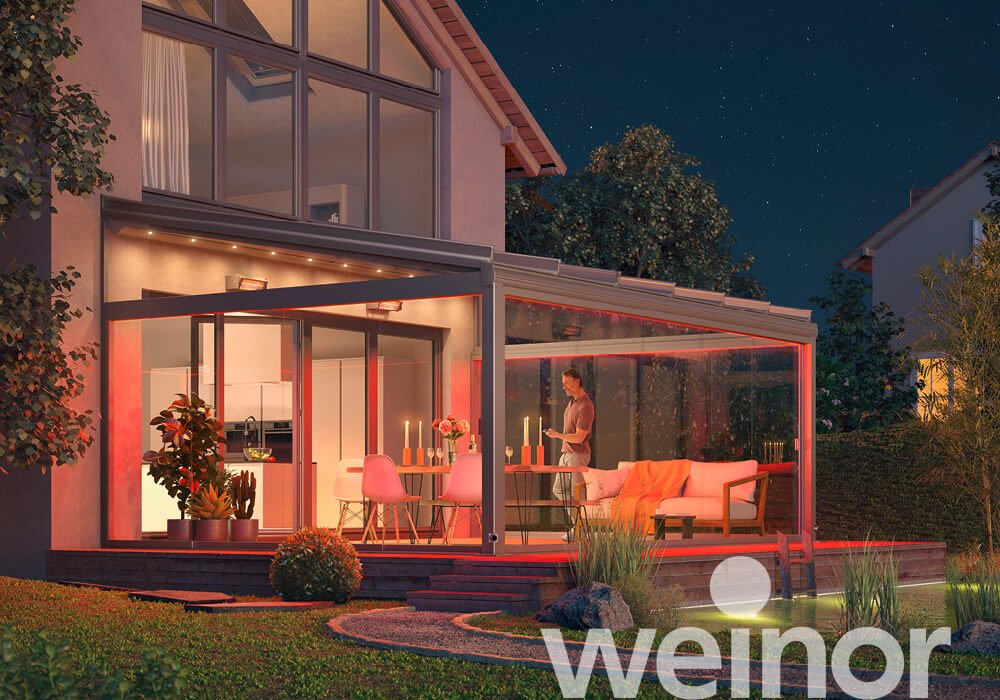

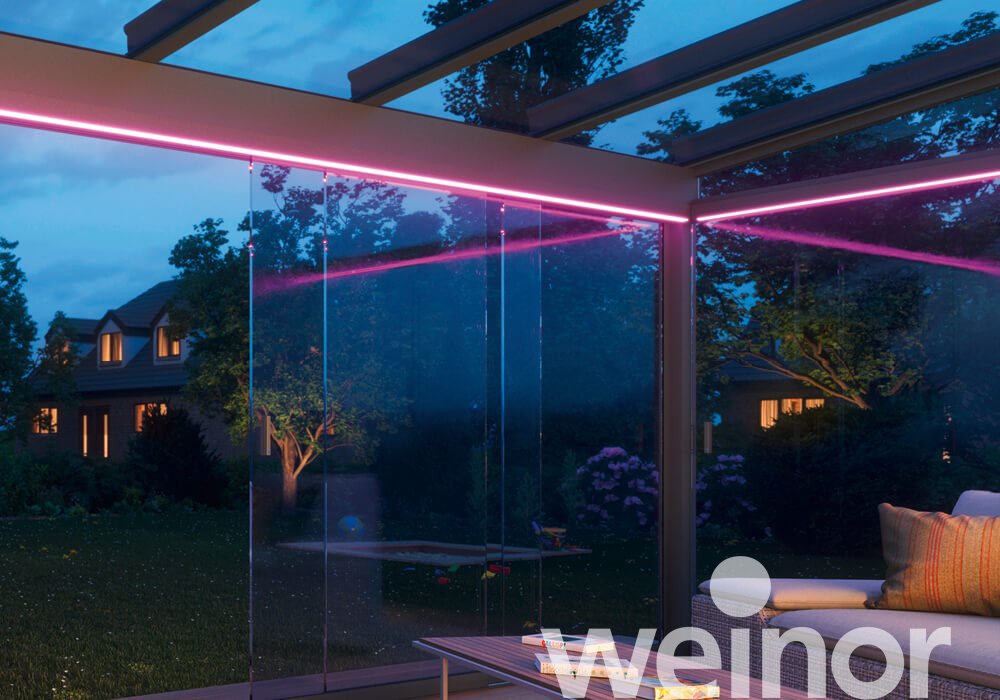

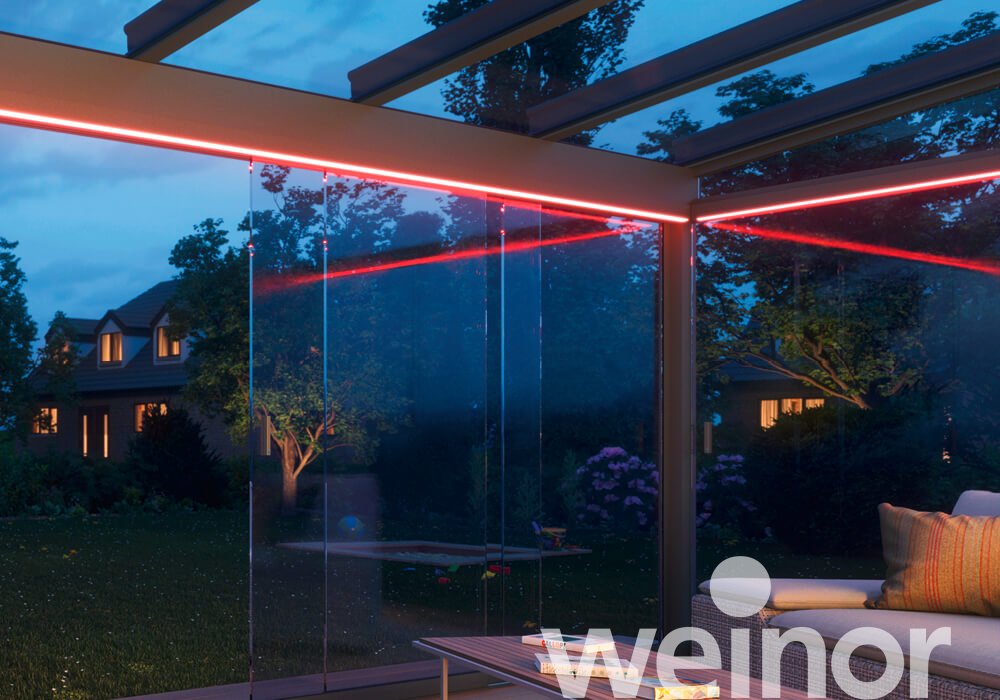

LED light bar systems

Warm white light for even longer hours of enjoyment on the patio.

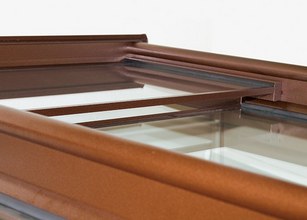

WeiTop DL permanent roof vent
