Plaza Viva

The textile pergola awning

Al fresco living in almost all conditions! With the Plaza Viva textile pergola awning you can now use your patio for even longer with even fewer worries – virtually regardless of the weather. Whether it's as sun shading on a sunny day, as extremely stable weather protection against gusty winds or as clever rain protection against light summer rain, you can enjoy an atmosphere of well-being on your patio without any disturbances thanks to the Plaza Viva.

At a glance

Checkmark

Protection against sun, wind and light rainfall

Checkmark

Optional telescopic post

Checkmark

Integrated LED lighting and Valance Plus possible

Checkmark

Width x projection (max.): 6 m x 5 m

Checkmark

More than 171 fabric patterns and 200 frame colours

Product-Highlights

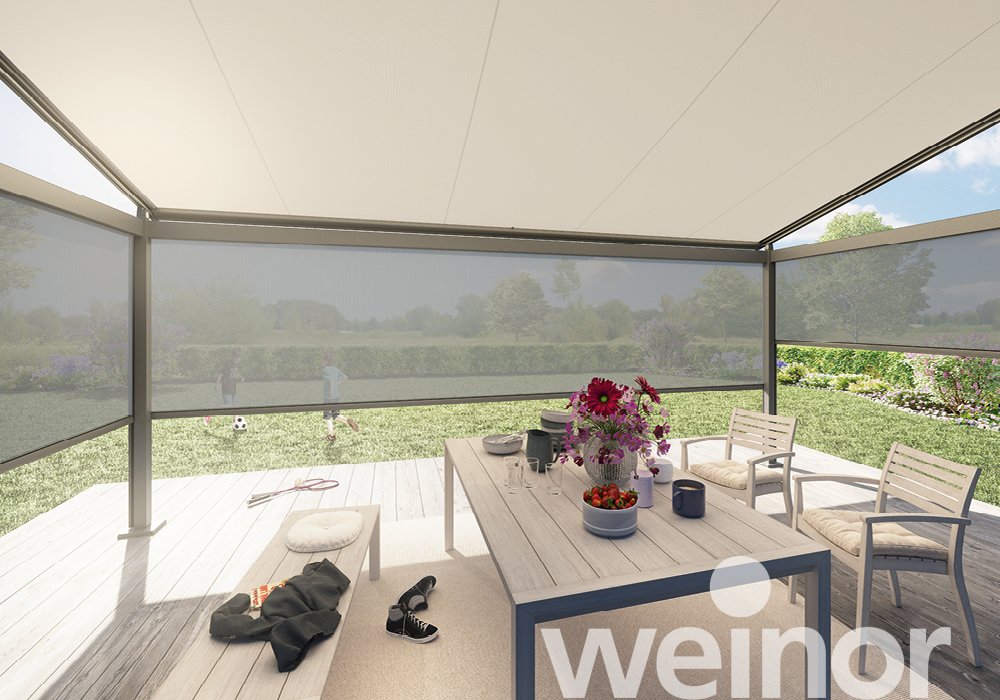

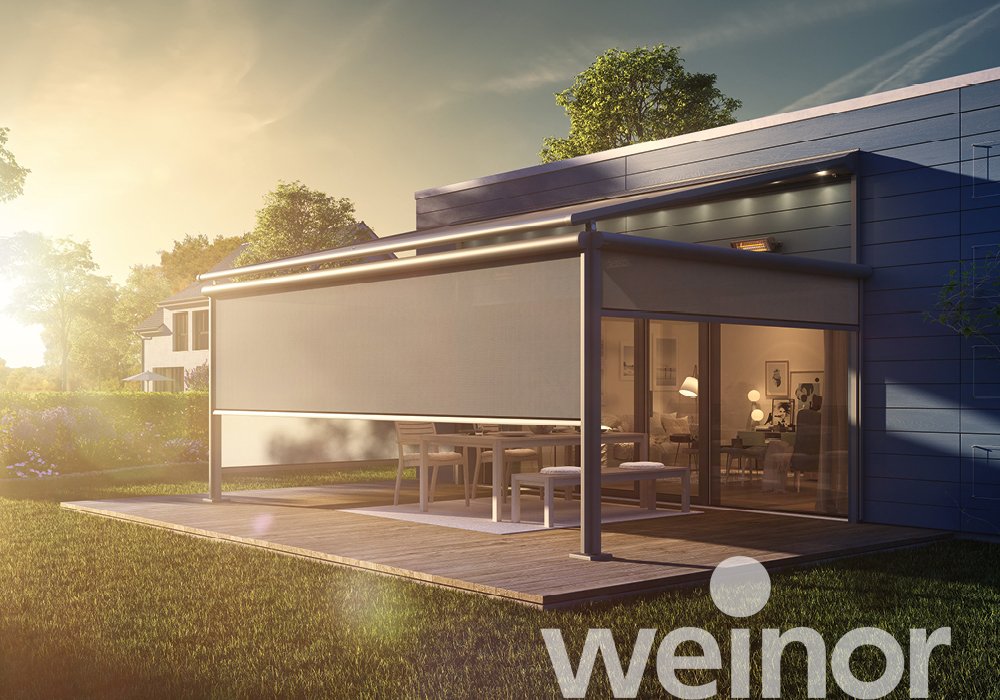

NEW! All-round protection with vertical awning

This clever combination with the VertiTex II vertical awning promises all-round reliable sun protection, privacy, wind screen and anti-glare protection under your Plaza Viva.

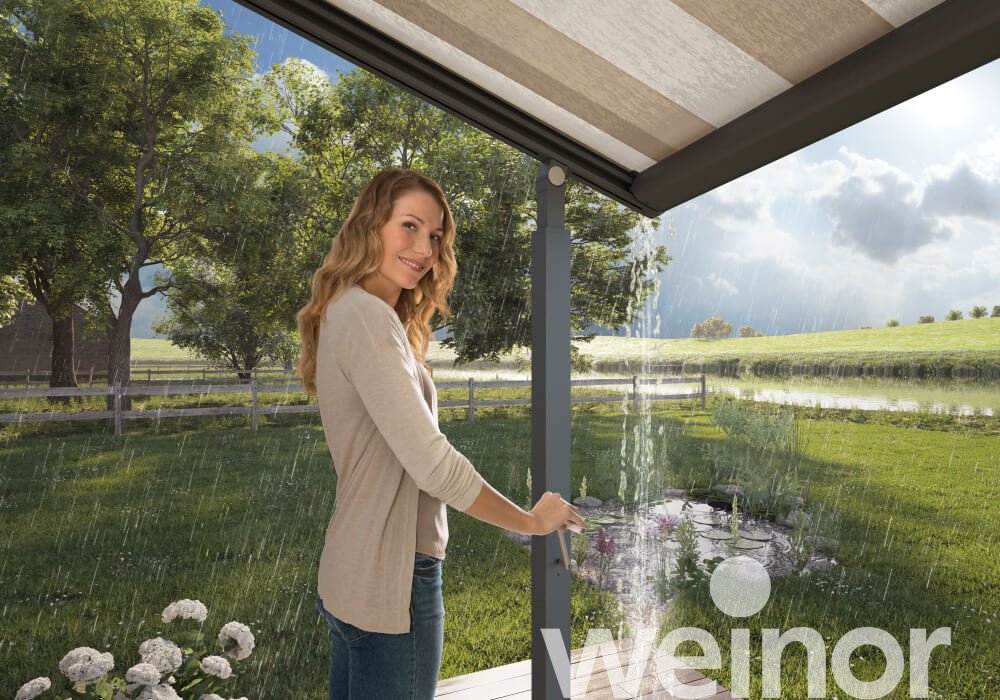

Optional telescopic post for easy water drainage

So that rain water can drain off reliably from the Plaza Viva fabric, the optional telescopic post can be lowered using a gear handle to achieve the required pitch.

Wall bracket with floating bearings

The wall bracket with floating bearing reduces the load on the whole construction when the optional telescopic post lowers the awning.

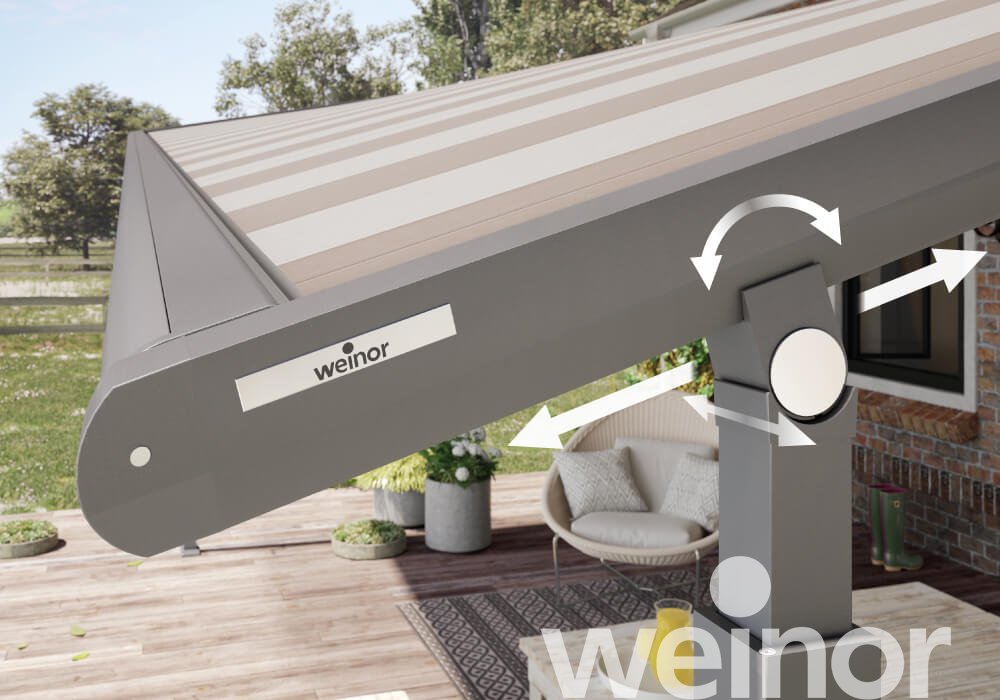

Compensation joint

Thanks to the compensation joint on the telescopic post the awning construction can adjust flexibly to the new pitch when lowered.

OptiStretch and Stretch versions

With Plaza Viva OptiStretch the fabric is held captive and on all four sides. The advantages: a highly tensioned fabric and no light gap on the sides. The basic version of the Plaza Viva Stretch is tensioned on two sides and there is a light gap between the fabric and guide channel. A strong rope tensioning system ensures even fabric positioning with both versions.

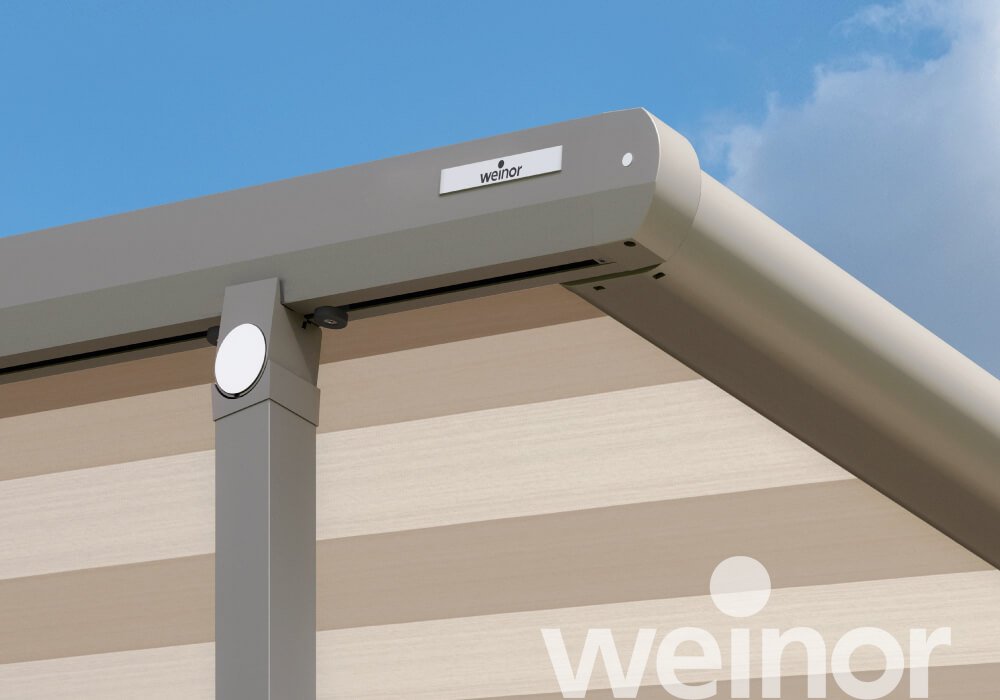

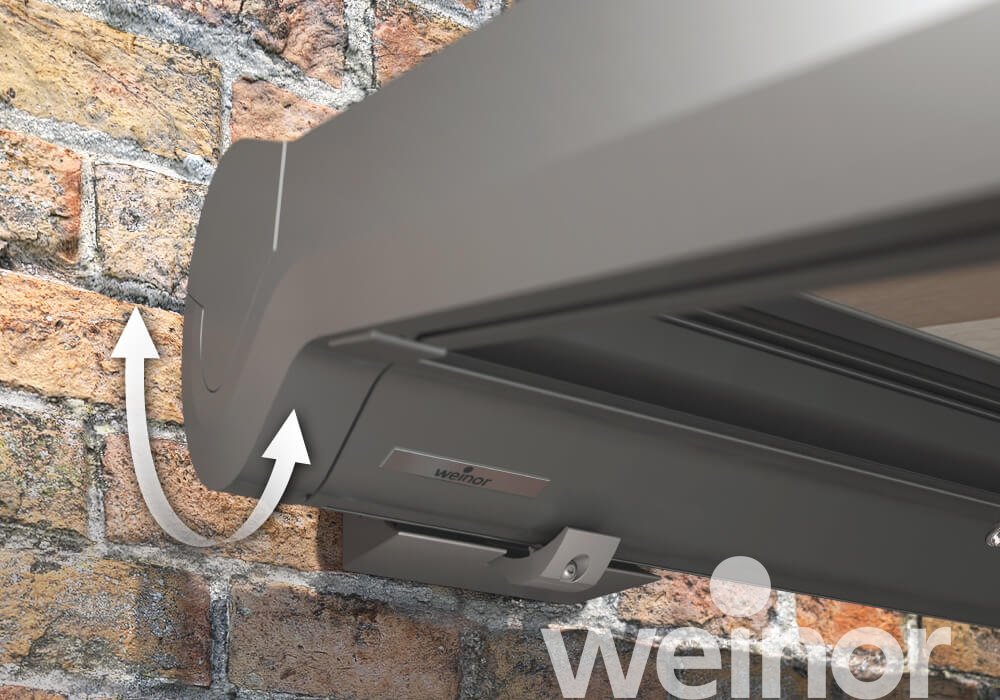

The fabric and mechanical parts are protected inside the cassette

The all-round enclosed and robust awning cassette keeps the fabric and other component parts well protected from the elements.

Patented carriage system and highly innovative tension system

The Plaza Viva tension system ensures optimum fabric performance and positioning. The flat rope is extremely quiet and durable, the tried and tested weinor carriage system features quiet retraction and extension that is gentle on materials.

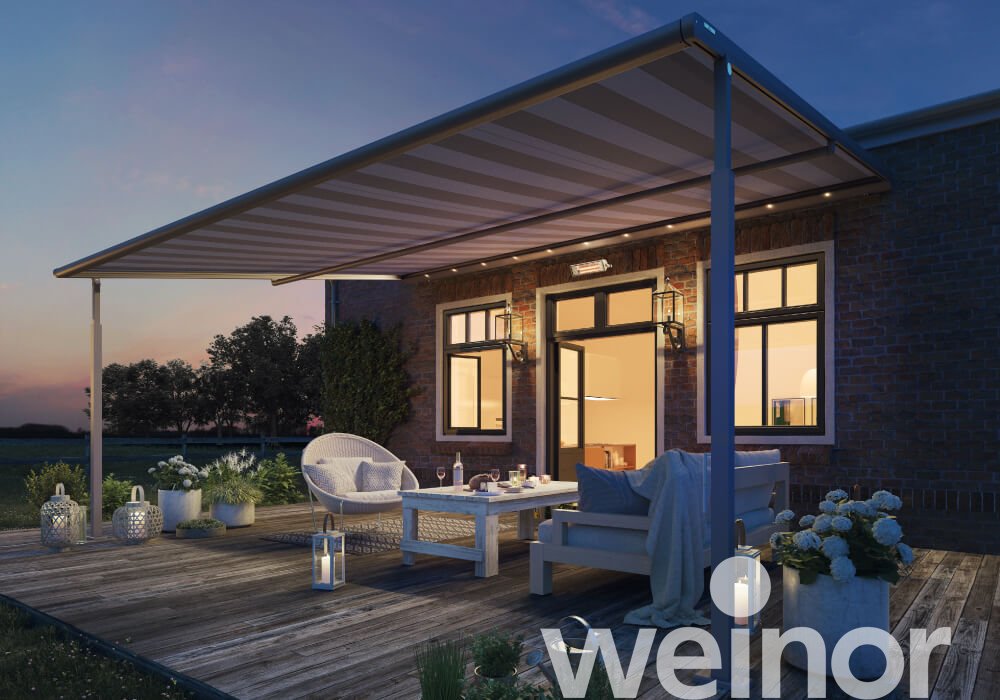

Optionally integrated LED lighting

With the optional LED lighting you create a haven of well-being on your patio in the evenings, too, with its pleasantly warm white light. The LED spotlights are dimmable via remote control using a hand transmitter or Smart Home via smartphone or tablet.

Valance Plus option

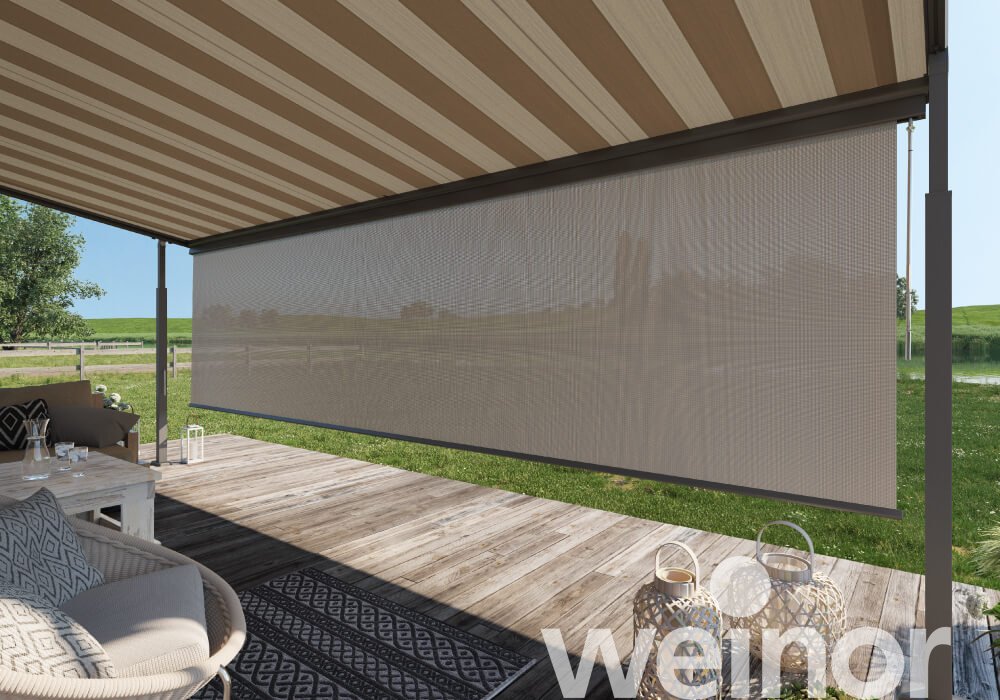

The optional Valance Plus provides perfect glare protection from low-lying sun. It can be lowered using the gear handle and then also offers reliable privacy protection.

For high winds

The Plaza Viva excels due to its high wind resistance. It consequently copes easily with winds up to force 6 on the Beaufort scale.
Background

How to find matching accessories

As a weinor retailer, we provide comprehensive advice and bring your desired product to your home. We look forward to serving you!
1 Select your dream model.
2 Arrange an appointment! with a retailer
3 Purchase and installation via the retailer
YOUR
WEINOR
RETAILER

Comprehensive expert advice fully in keeping with your wishes and ideas.

Precisely tailored on-site planning with prepared costs and deadlines.

Safe installation by your trained weinor retailer.

Top support and competent service, also post-purchase.

Plaza Viva Picture Gallery

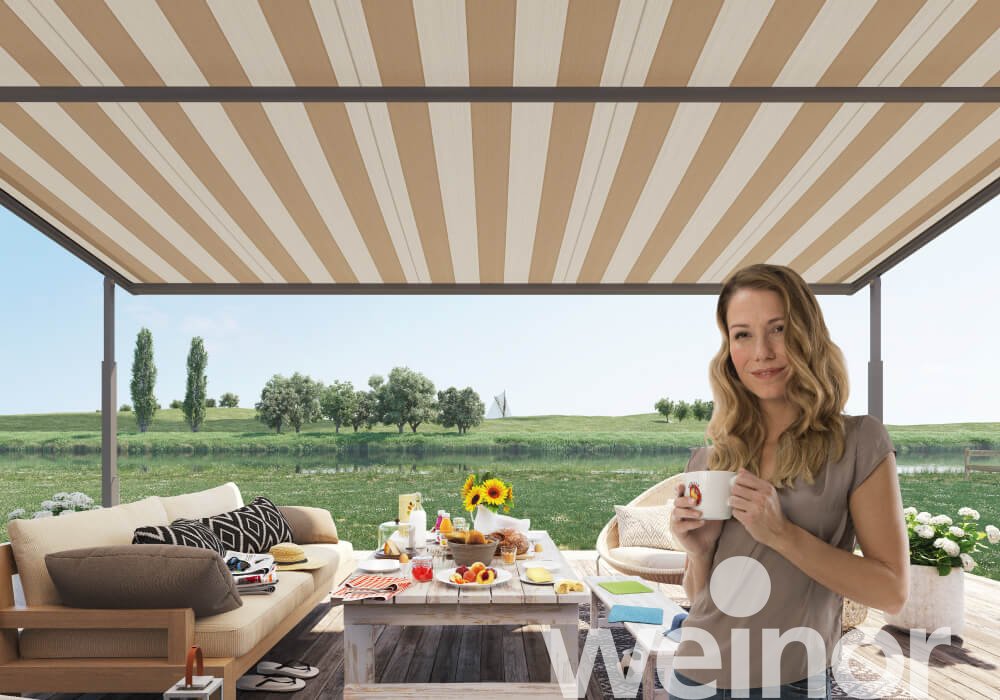

Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Iconic Award Winner Plava Viva
Plaza Viva - the weinor textile pergola awning
Reference page
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning
Plaza Viva - the weinor textile pergola awning

Product data

max. whidt 6 m
max. projection 5 m
Multi-unit systems Optional
Wind protection tested to wind force 6 (Beaufort)
Rain protection from a 4° pitch
Roof pitch 4° – 25°
Installation options Installation on walls, ceilings / overhangs and roofs possible
Motor drive as standard

*The water drainage effect using the telescopic technology is only achieved with a minimum awning pitch of 4 and when the telescopic post is completely lowered (except the Valance Plus option where the minimum pitch required is 5°).

Plaza Viva / LED: Good to know before you buy!

Benefit from the experience of our weinor retailers – up-to-date, professional and practical!

What to do when it's freezing?
Chevron Down

It is better not to operate the pergola awning in frosty conditions to prevent damaging any frozen components. However, if this is necessary in practice: it is better to keep an eye on the system! So you can stop quickly if something is frozen and prevent any damage. Our tip: Switch off the weather sensors on your product in frosty conditions to prevent it retracting and extending when you are not at home.

And in windy conditions?
Chevron Down

Pergola awnings can also withstand higher wind speeds (please see the product data for details). Despite this, it is better to retract the awning before strong winds develop and keep it closed. This reduces the risk of your pergola awning being damaged by strong gusts of wind. If you supplement your system with a wind sensor, it will do this job for you.

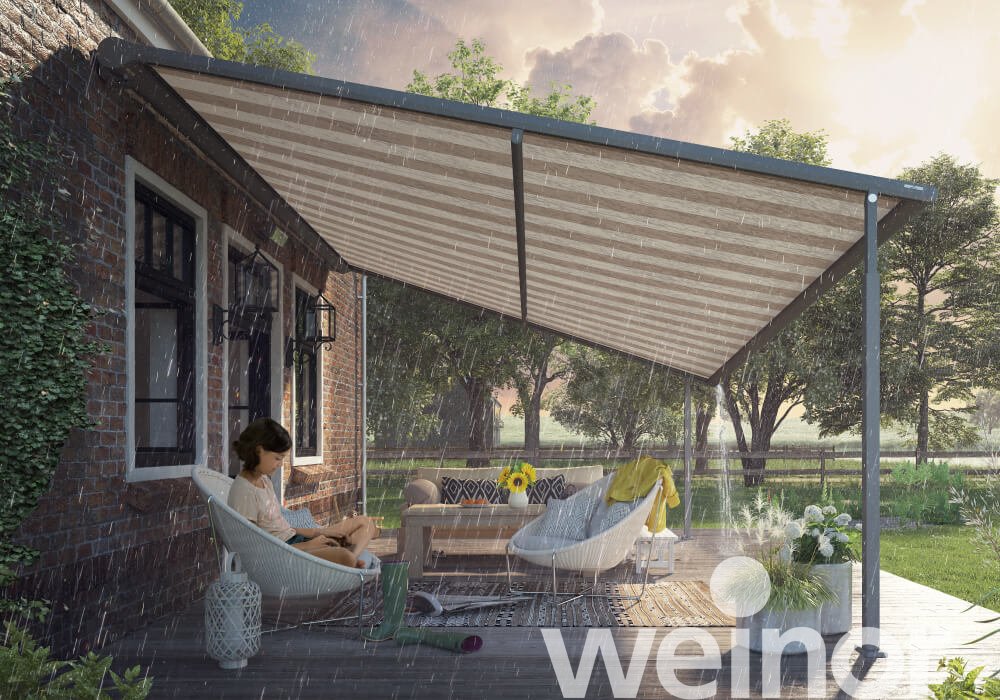

How much rain is okay?
Chevron Down

In light rain, the Plaza Viva pergola awning can remain extended without any problems. With optional telescopic posts, it offers reliable rain protection from a pitch of 4°, with fixed posts from a pitch of 14°. However, it is not made for heavier showers or summer downpours. To avoid undesirable consequences, the pergola awning should therefore be retracted when heavy rain is forecast.

Rainwater in the awning
Chevron Down

If you retract Plaza Viva with damp fabric, rainwater ingresses the inside of the awning.  And water can also penetrate a closed awning – in particular if it is installed on the side of the building which is exposed to the weather. However, your fabric is not affected in this case: the water collects in the awning’s drainage guttering and specifically drained away from it. Under certain circumstances, this can also take place if you extend your construction again after it has rained.

Fabrics react to the environment
Chevron Down

Fabrics reach to external conditions. If it is dry or damp, warm or cold outside, the awning fabric may shrink or expand – only minimally of course. The size of the system also plays a part. These external factors may cause waves and folds in the fabric. These folds are quite normal though and do not damage the awning.

Avoiding transverse seams
Chevron Down

Fabrics are tailored to the system size. As not every type of fabric has the same width, this may result in transverse seams with the optional Valance Plus. This depends entirely on which fabric you choose and what valance length you want. The best thing to do is to contact your weinor retailer beforehand and ask for advice on the most suitable type of fabric.

Wrinkling – no need to worry!
Chevron Down

Some irregularities simply cannot be avoided due to environmental and production reasons – for example, creases, bulging and wrinkling due to the different winding diameter on the roller tube. Rippling and overstretching in the seam area or honeycombing may also occur. But we can reassure you: you are dealing with a high-performance fabric – small blemishes do not impair its functionality. They are therefore not a reason for rejection or grounds for complaint. More information at www.weinor.com/fabric_qualities.

Quiet but not silent
Chevron Down

What one person finds loud and disturbing is barely perceptible to another. This also applies to the creaking noises your product makes. When the temperature changes, your pergola awning’s material expands or contracts – a natural process that cannot be avoided. Noise also occurs when retracting and extending the awning, which can be louder or quieter depending on the building situation. In any case, the creaking and running noises do not affect your pergola awning’s functionality.

Keeping an eye on the product
Chevron Down

You should take a closer look at your pergola awning every now and then: does everything look good and is it all firmly in place? If you notice anything wrong, contact your retailer for maintenance. It is advisable to clean your construction at least once a year, or even twice a year in the case of heavy use. Please refer to our “10 tips on awning fabrics” brochure for this.
Our tip: If you are not at home for a longer period of time, retract your pergola awning and simply switch the automatic system to “OFF”. This will avoid the awning from being retracted and extended unsupervised.

The awning that grows with you
Chevron Down

If, after installing your pergola awning, you find that you would like to have even more comfort after all, additional products are available within weinor’s modular system and are easy to retro fit. Whether it is an automatic weather system, a heating system, lighting, a new fabric or vertical sun protection – everything fits perfectly together. The additional options do of course have technical limits. Fortunately, these are just exceptions, which we are working on …

Reliably weather sensitive
Chevron Down

Even if you don't have your awning in sight, weather sensors ensure that your radio-controlled awning can automatically extend when the sun is shining and retracts again when it is rainy or windy. As a result, the climate on the patio and indoors remains more pleasant. The risk of water or storm damage to your product can be reduced with the right sensor.

Compensating joints
Chevron Down

For a pergola-awning to work properly, all the components must work together in harmony. Even minor unevenness on the house wall can mean that awnings do not run as smoothly as they should. weinor pergola awnings react to the condition of the installation surface and compensate for this if necessary. The joints that then appear do not have a negative effect on your awning’s function though – quite the opposite!
