Smaila

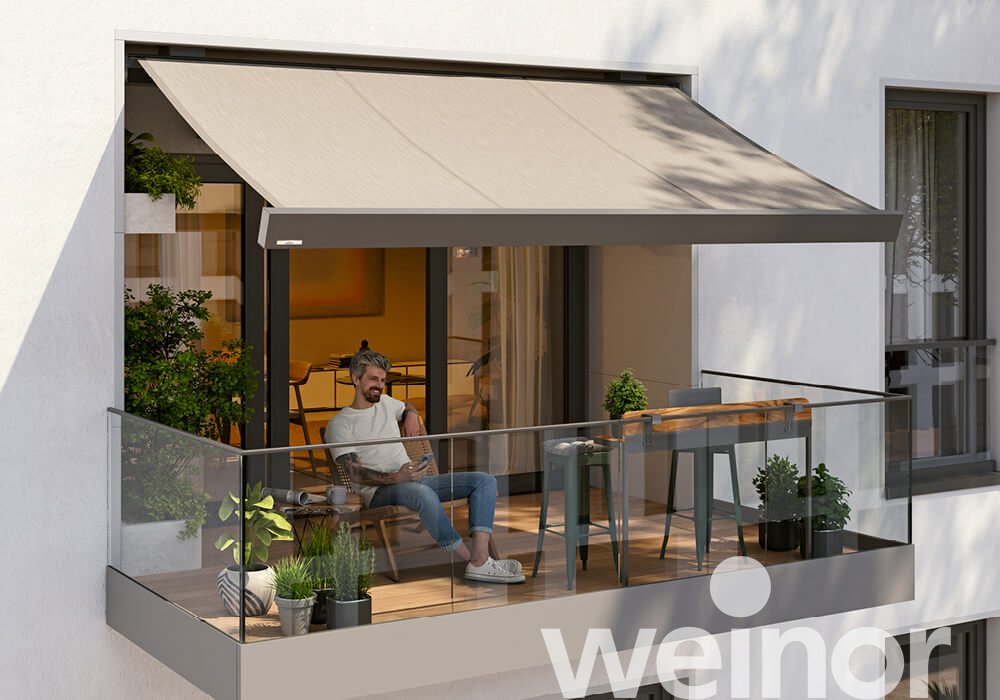

The small, cubic awning

If you are looking for high-quality, elegant and individual sun protection for the balcony or a small patio, there’s no way around Smaila. The cassette awning from weinor offers an abundance of options to place fantastic optical accents in your outdoor area. And also the very modern technical features with top quality “Made in Germany” leave no wishes open.

At a glance

Checkmark

Cubic cassette awning for balconies and small patios

Checkmark

Chic, square design and top quality

Checkmark

Optionally with LED lighting and Valance Plus including a solar module

Checkmark

Can be integrated in the Smart Home system

Checkmark

Width x projection (max.): 5 x 3.5 m

Checkmark

171 fabric patterns and more than 200 frame colours

Design Smaila to suit your personal taste!

Smaila offers a host of options to set fantastic accents on the balcony or patio – for example with attractive decorative panels which make your favourite place unmistakeable.

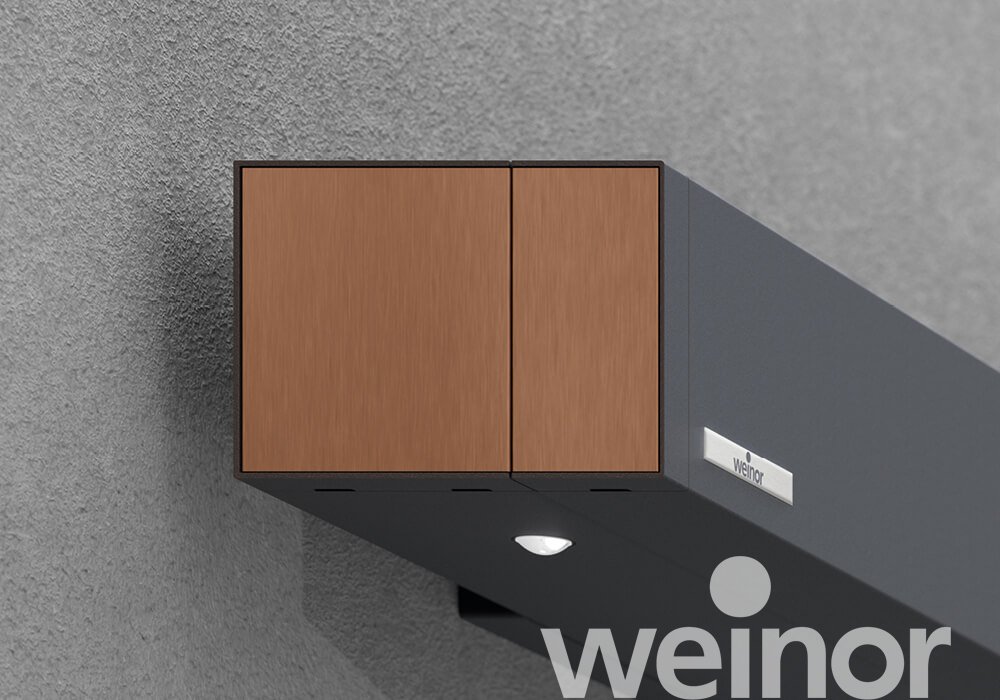

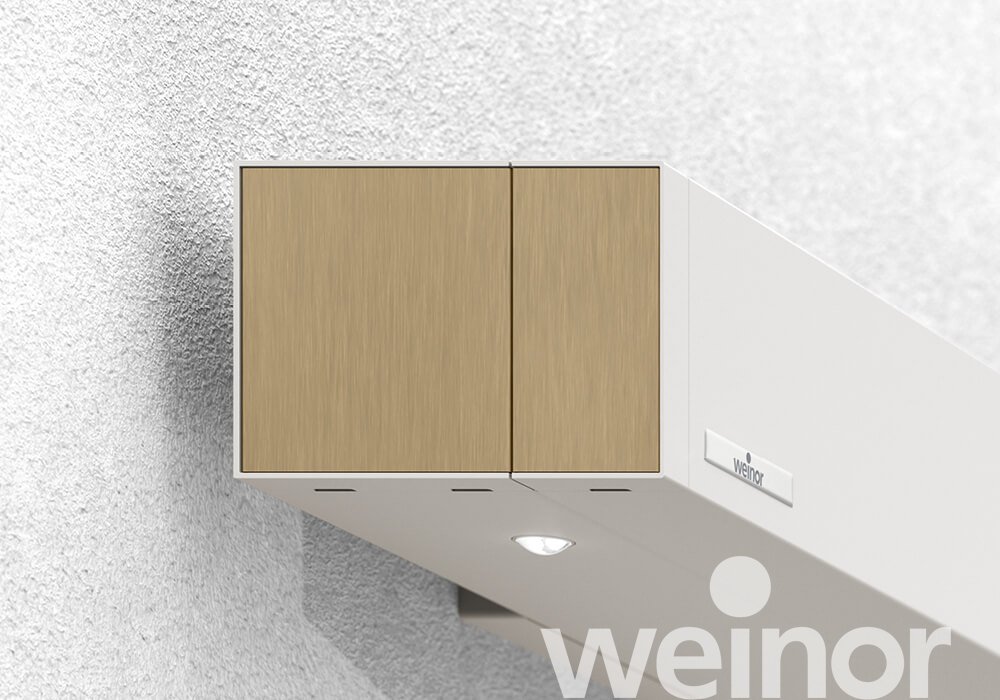

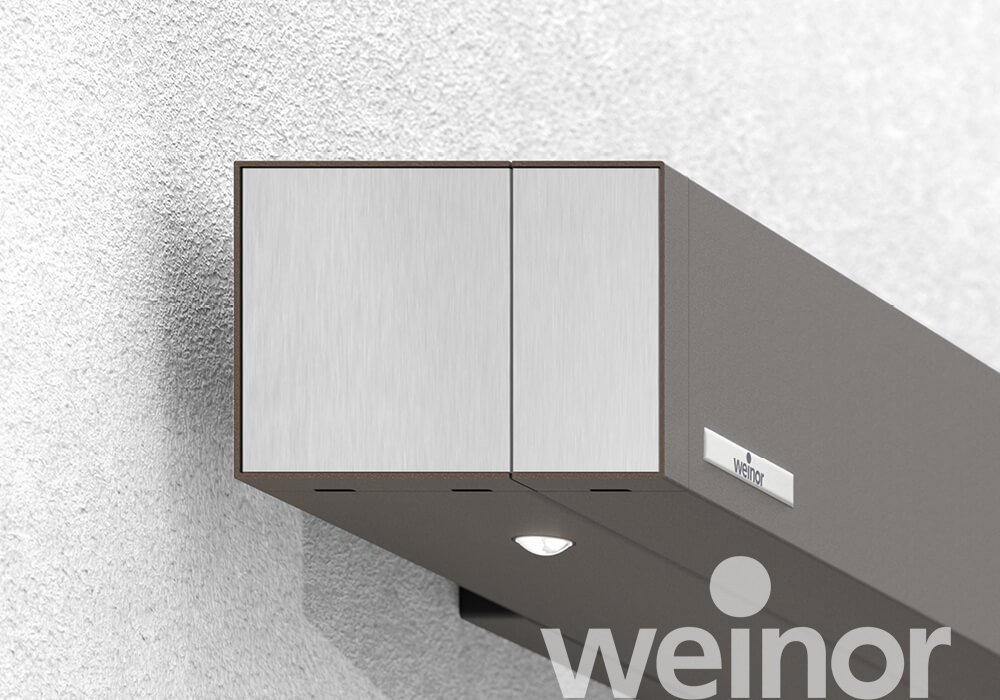

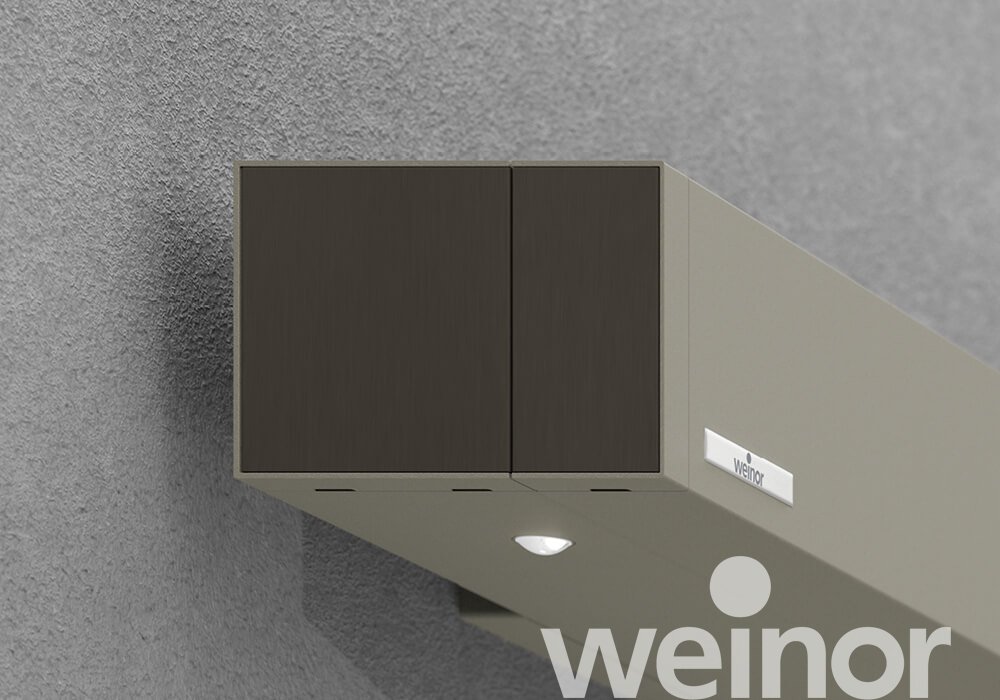

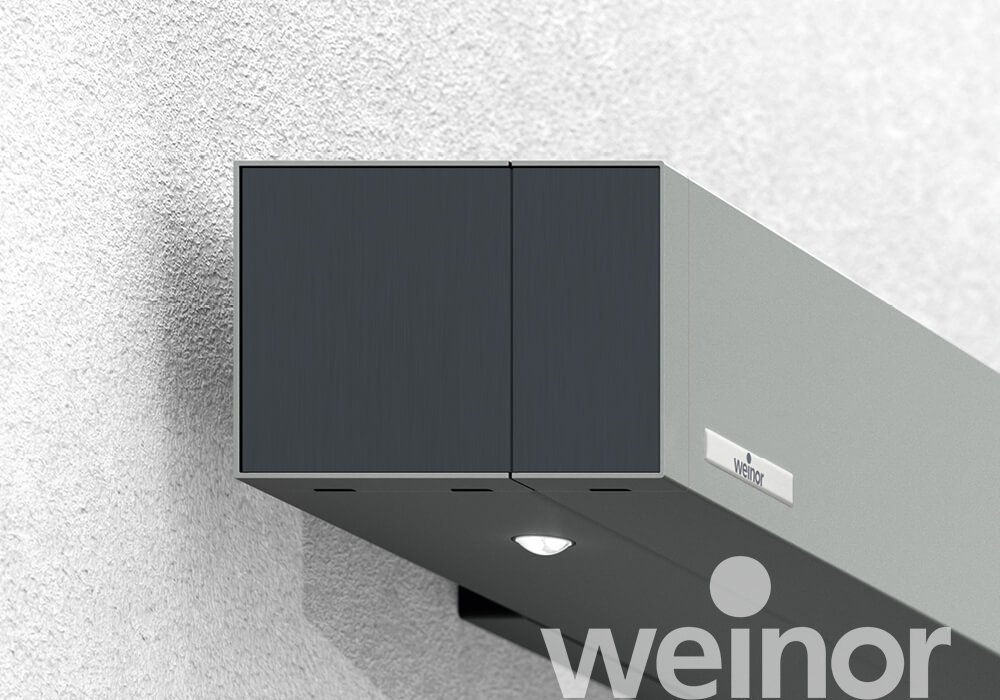

Contemporary decorative end caps

To provide the awning cassette with a special touch, the end caps can be equipped with 5 attractive patterns. This provides Smaila with an unmistakeable look. Of course, the panels are also available in the awning frame colour.

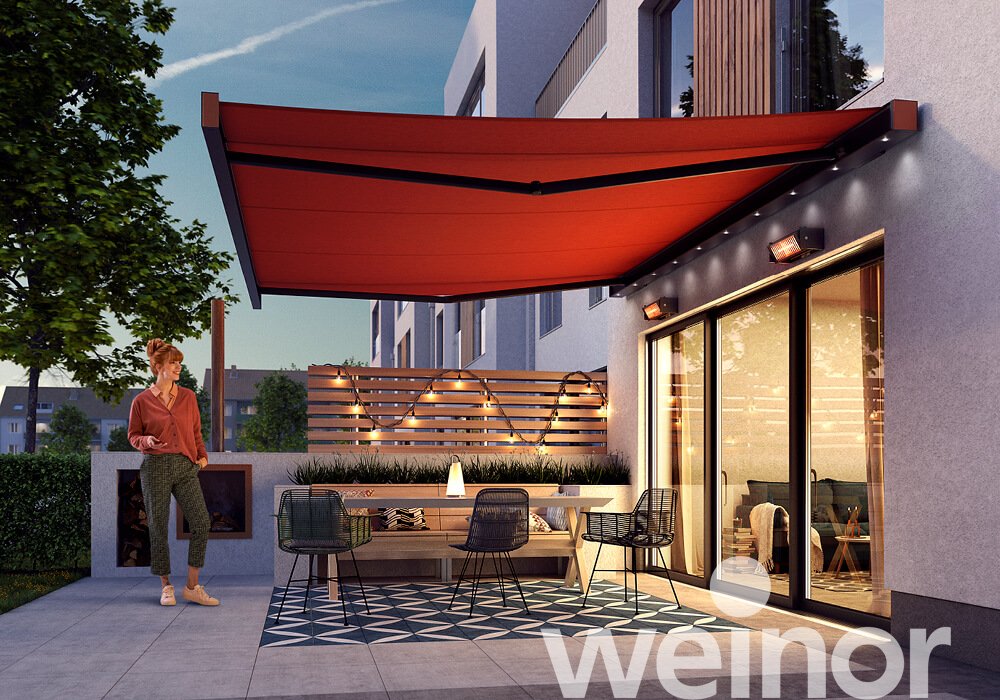

More atmospheric time on the balcony and patio

With the optional weinor Tempura heating system, you can also enjoy your time on the balcony and patio on cooler evenings. And also choose LED spotlights which are integrated into the awning cassette to make the outdoor mood perfect at your favourite place.

Product-Highlights

Slim, cubic design

Modern contemprary shape, decorative side end caps and a high visible fabric share make Smaila a chic accessory on balconies and small patios.

Optimally protected against the wet and dirt

The all-round enclosed and robust awning cassette keeps the fabric and other technical components just as well protected against the elements as the controlled rain drain at the front of the front profile.

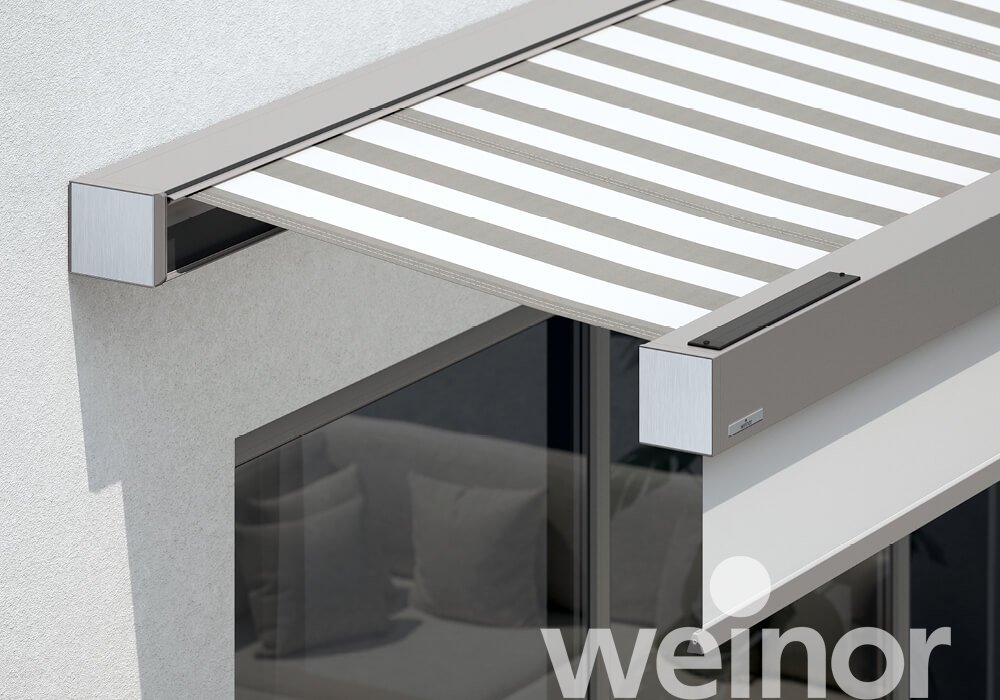

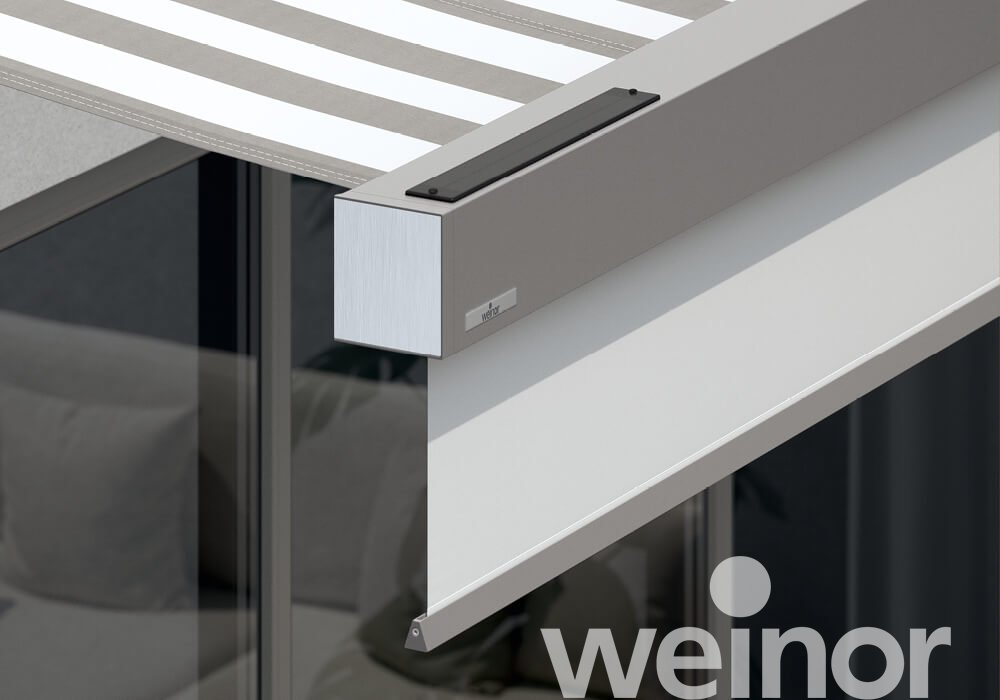

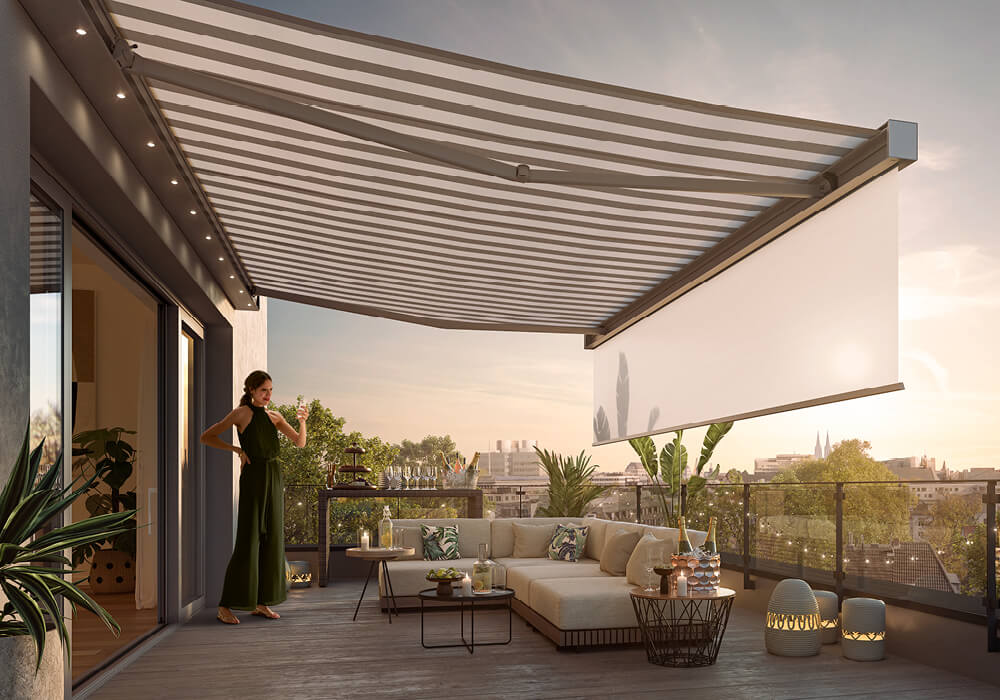

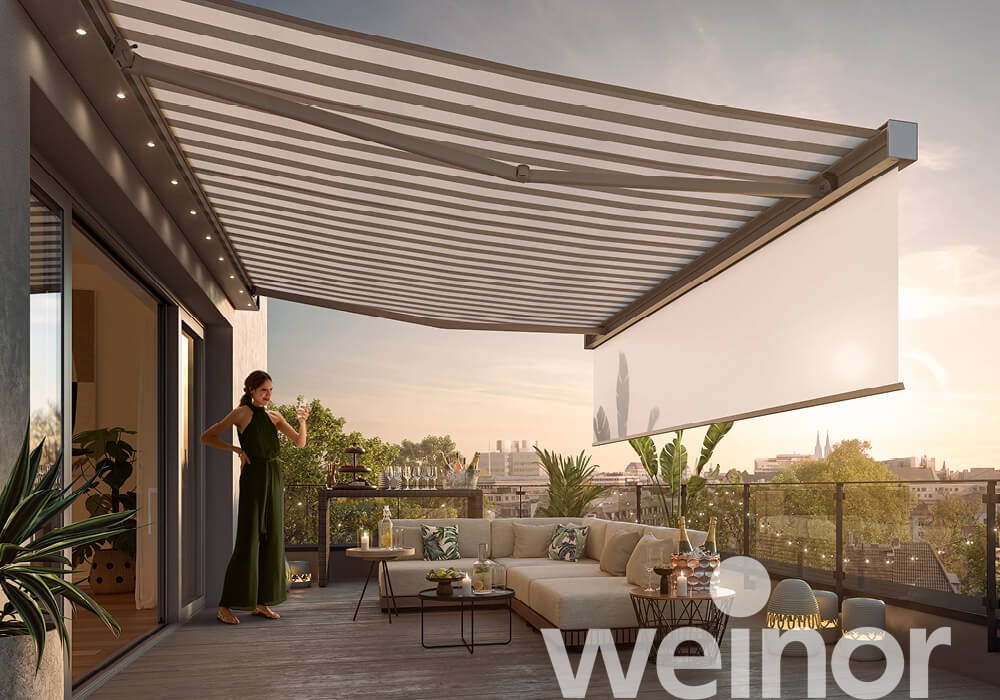

Optionally with Valance Plus including a solar module

Smaila can optionally be supplemented with a Valance Plus. It ensures sun, privacy and glare protection from the front. With an integrated solar module, it can be extended and retracted fully independently of the power supply as needed.

Top quality

The strong and low-noise weinor LongLife arm and several further high-quality components guarantee top notch quality “Made in Germany”.

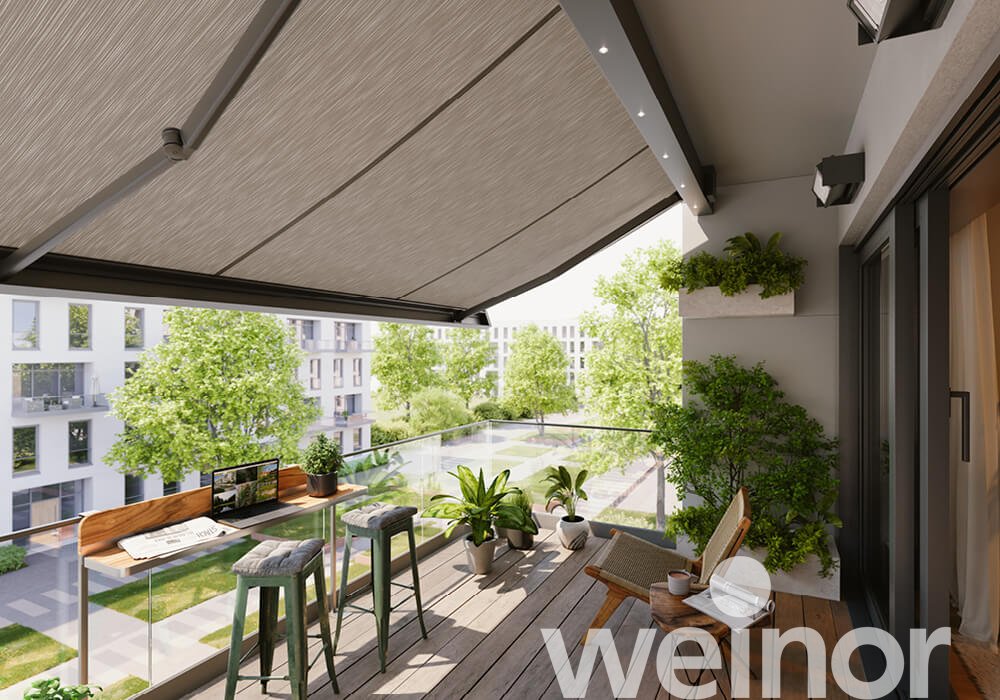

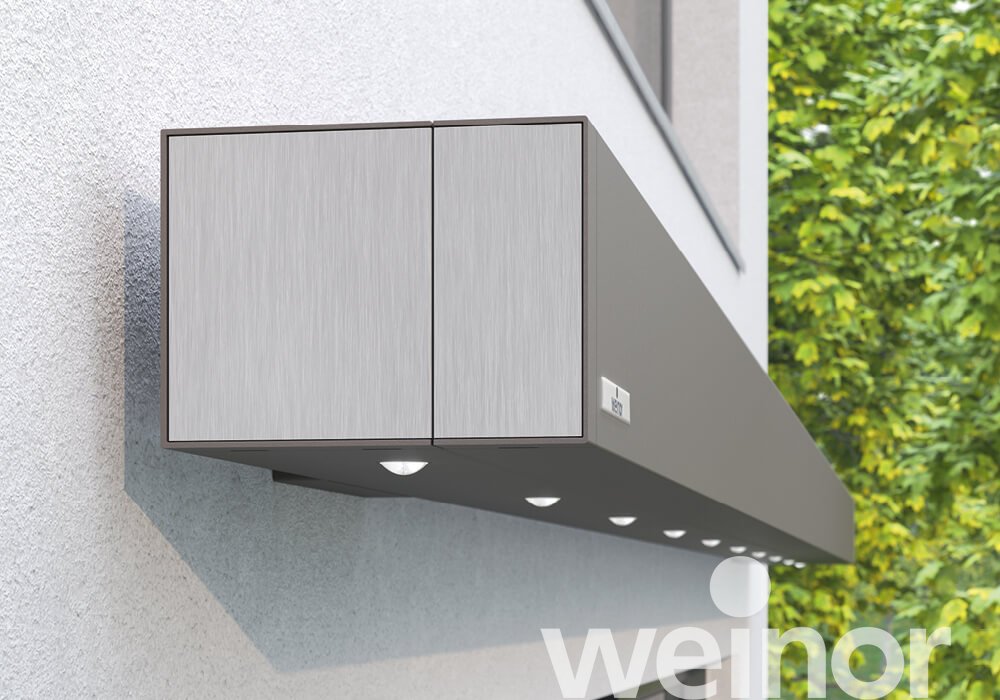

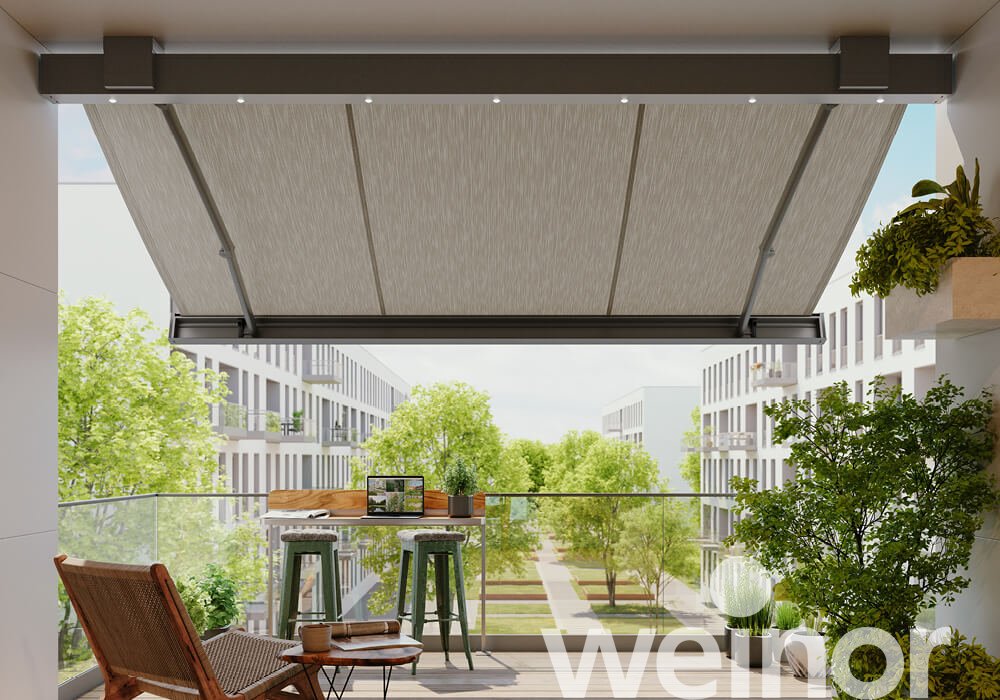

Integrated LED lighting

LED spotlights integrated into the cassette are available on request. The economical LEDs stand out due to their low energy consumption and are infinitely dimmable – regardless of whether via remote control with a hand transmitter or using a Smart Home app with a smartphone or tablet.

The right solution for every installation situation

Smaila can be installed everywhere, no matter whether on walls, ceilings or rafter brackets. An individual and visually attractive solution is also provided for highly specific constructional prerequisites.

Diverse operation options

Various control options are available for operating Smaila – as desired via a gear handle, cable, remote control or Smart Home, using a hand transmitter, smartphone or automatic weather control.

For high winds

Smaila excels due to its high wind resistance. It easily withstands wind forces of up to 5 on the Beaufort scale. The tried and tested wind lock safety device prevents the awning from being lifted up during gusts of wind from below.

How to find matching accessories

As a weinor retailer, we provide comprehensive advice and bring your desired product to your home. We look forward to serving you!
1 Select your dream model.
2 Arrange an appointment! with a retailer
3 Purchase and installation via the retailer
YOUR
WEINOR
RETAILER

Comprehensive expert advice fully in keeping with your wishes and ideas.

Precisely tailored on-site planning with prepared costs and deadlines.

Safe installation by your trained weinor retailer.

Top support and competent service, also post-purchase.

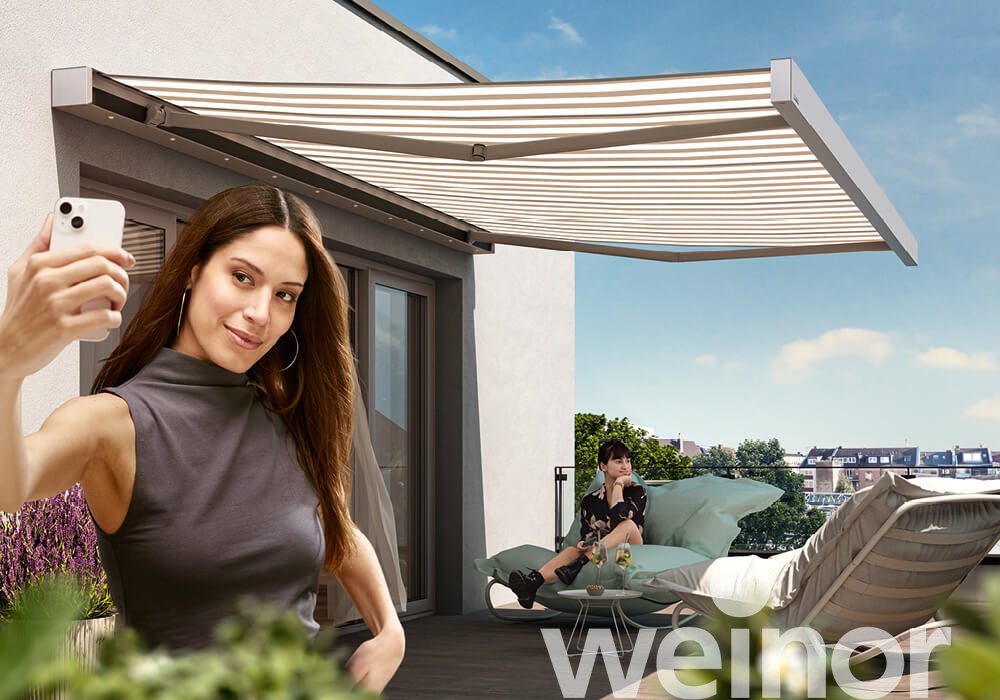

Smaila image gallery

Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Reference page
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila
Cassette awning weinor Smaila

Product data

Smaila

max. width 5.5 m (with 3 m max. projection)
max. projection 3.5 m (with 5 m max. width)
Cassette dimensions 21 x 15.5 cm (W x H)
Wind resistance Tested to wind force 5 (Beaufort scale)
Pitch Up to 40° | For Valance Plus up to 20°
Awning drive Motor drive (as standard) | gear handle
Valance Plus drive Gear handle (as standard) | remote-controlled motor (solar)
Valance Plus patterns StarScreen, Soltis 86/92, my collections 2

Smaila: Good to know before you buy!

Benefit from the experience of our weinor retailers – up-to-date, professional and practical!

Weiße Schneeflocke
What to do when it's freezing?
Chevron Down

It is better not to operate the awning in frosty conditions to prevent damaging any frozen components. However, if this is necessary in practice: it is better to keep an eye on the system! So you can stop quickly if something is frozen and prevent any damage. Our tip: Switch off the weather sensors on your product in frosty conditions to prevent it retracting and extending when you are not at home.

weinor Icons Wind
And in windy conditions?
Chevron Down

Awnings can also withstand higher wind speeds (please see the product data for details). Despite this, it is better to retract the awning before strong winds develop and keep it closed. This reduces the risk of your awning being damaged by strong gusts of wind. If you supplement your system with a wind sensor, it will do this job for you.

weinor icon markise naesse
It’s best to avoid wetness
Chevron Down

The awning’s basic function is to protect against sunlight and heat. It’s better to retract your sun protection when it’s raining. As wet fabrics may develop more wrinkling, water and mildew stains. It is also possible that honeycomb patterns may appear. If your awning does happen to get damp, it is best to extend it to dry out as soon as the weather has improved

Rainwater in the awning
Chevron Down

If you nonetheless have to retract damp fabric at any time, rainwater ingresses the inside of the awning. And water can also penetrate a closed awning – in particular if it is installed on the side of the building which is exposed to the weather. However, your fabric is not affected in this case: the water collects in the awning’s drainage guttering and specifically drained away from it. Under certain circumstances, this can also take place if you extend your construction again after it has rained.

weinor Icons Wetter
Fabrics react to the environment
Chevron Down

Fabrics reach to external conditions. If it is dry or damp, warm or cold outside, the awning fabric may shrink or expand – only minimally of course. The size of the system also plays a part. These external factors may cause waves and folds in the fabric. These folds are quite normal though and do not damage the awning.

weinor icon markise quernaht
Avoiding transverse seams
Chevron Down

Fabrics are tailored to the system size. As not every type of fabric has the same width, this may result in transverse seams with the optional Valance Plus. This depends entirely on which fabric you choose and what valance length you want. The best thing to do is to contact your weinor retailer beforehand and ask for advice on the most suitable type of fabric.

weinor icon markise falten
Wrinkling – no need to worry!
Chevron Down

Some irregularities simply cannot be avoided due to environmental and production reasons – for example, creases, bulging and wrinkling due to the different winding diameter on the roller tube. Rippling and overstretching in the seam area or honeycombing may also occur. But we can reassure you: you are dealing with a high-performance fabric – small blemishes do not impair its functionality. They are therefore not a reason for rejection or grounds for complaint. More information at https://www.weinor.com/fabric_qualities.

weinor icon markise
Quiet but not silent
Chevron Down

What one person finds loud and disturbing is barely perceptible to another. This also applies to the creaking noises your product makes. When the temperature changes, your awning’s material expands or contracts – a natural process that cannot be avoided. Noise also occurs when retracting and extending the awning, which can be louder or quieter depending on the building situation. In any case, the creaking and running noises do not affect your awning’s functionality.

weinor icon markise pflege
Keeping an eye on the product
Chevron Down

You should take a closer look at your awning every now and then: does everything look good and is it all firmly in place? If you notice anything wrong, contact your retailer for maintenance. It is advisable to clean your construction at least once a year, or even twice a year in the case of heavy use. Please refer to our “10 tips on awning fabrics” brochure for this.
Our tip: If you are not at home for a longer period of time, retract your awning and simply switch the automatic system to “OFF”. This will avoid the awning from being retracted and extended unsupervised.

weinor icon markise
The awning that grows with you
Chevron Down

If, after installing your awning, you find that you would like to have even more comfort after all, additional products are available within weinor’s modular system and are easy to retro fit. Whether it is an automatic weather system, a heating system, lighting, a new fabric or vertical sun protection for the pergola awning – everything fits perfectly together. The additional options do of course have technical limits. Fortunately, these are just exceptions, which we are working on …

weinor icon Markise
Reliably weather sensitive
Chevron Down

Even if you don't have your awning in sight, weather sensors ensure that your radio-controlled awning can automatically extend when the sun is shining and retracts again when it is rainy or windy. As a result, the climate on the patio and indoors remains more pleasant. The risk of water or storm damage to your product can be reduced with the right sensor.

Compensating joints
Chevron Down

For an awning to work properly, all the components must work together in harmony. Even minor unevenness on the house wall can mean that awnings do not run as smoothly as they should. weinor awnings react to the condition of the installation surface and compensate for this if necessary. The joints that then appear do not have a negative effect on your awning’s function though – quite the opposite!

For further information on proper operation, please refer to your maintenance and operating instructions.
