OPAL DESIGN II

OPAL DESIGN II

Classic design with the latest technology

Impressive features for a top-class awning

The new Opal Design II cassette awning stands out for its timeless, classic design hand in hand with groundbreaking weinor technology. Made to shade large areas, it blends in harmoniously with its surrounding architecture, the attractive shape of the cassette adding a sophisticated element. A wide range of tempting and practical optional extras make it easy to operate and wonderfully convenient while also extending its lifetime.

At a glance

Checkmark

Full cassette awnings protect the fabric and mechanism from the elements

Checkmark

2 Design Awards

Checkmark

LED Design bar optional

Checkmark

Max. width x projection: 12 m x 4 m

Checkmark

Valance Plus shades you from even the lowest-lying sun

Checkmark

155 fabric patterns and 56 frame colours to choose from

Technical highlights

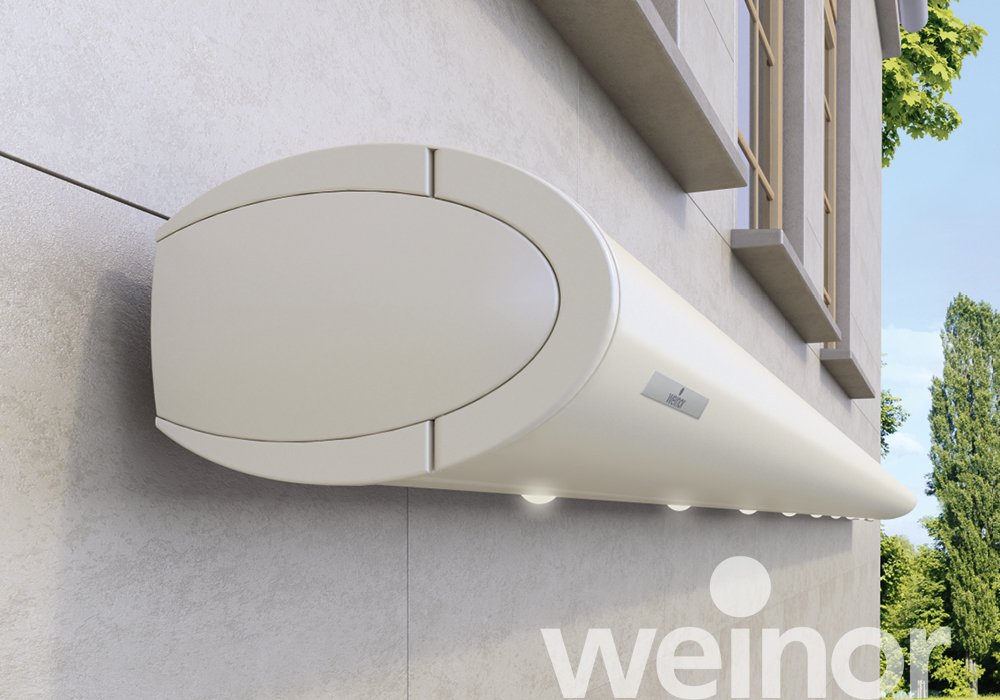

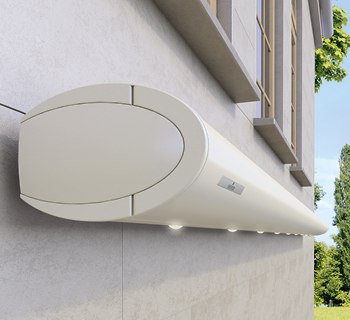

End cap closure – unique and safe

If you can see the spring loaded clips at the end of the front profile are closed, then the awning is reliably protected against the elements and dirt.

Integrated LED lighting

The Opal Design II LED casts an atmospheric, warm white light for even longer hours of enjoy-ment on the patio.

Valance Plus

With it’s unique, patented technology, the Opal Design II Valance Plus provides the best possible privacy, as well as outstanding glare and sun protection.

LongLife arm

The appeal of the low-noise weinor LongLife arm is its very high tension force – even in gusty conditions. This ensures the fabric is exceptionally well positioned.

For high winds

The Opal Design II excels due to its high wind resistance. It consequently copes easily with winds up to force 5 on the Beaufort scale.

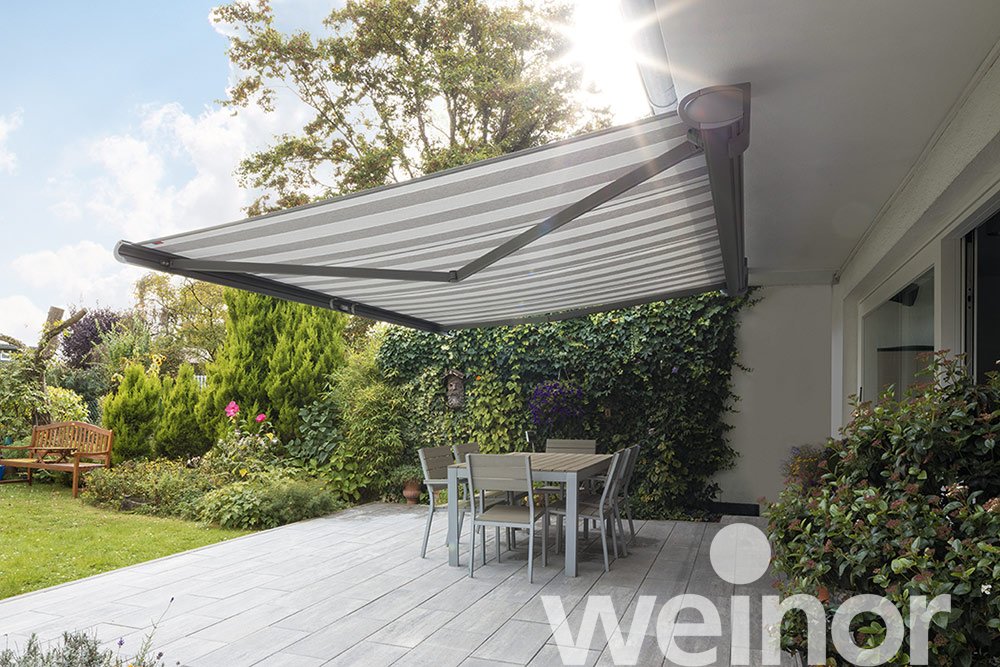

Opal Design II / LED Picture Gallery

Awning weinor Opal Design II

Awning weinor Opal Design II

Awning weinor Opal Design II

product design award 2014 weinor Opal Design II

Awning weinor Opal Design II

Reference page

Awning weinor Opal Design II

Awning weinor Opal Design II

Awning weinor Opal Design II

Awning weinor Opal Design II

German Design Award weinor Opal Design

Awning weinor Opal Design II

Product data

max. width 1-section 6,5 m
max. projectio 1-section 4 m
max. width 2-section 12 m
max. projectio 2-section 4 m
motor drive standard
crank drive -
tilt adjustment 5° – 40°
mounting version Wall, ceiling or rafter attachment possible
Volant Plus max. width 5 m/6 m
Volant Plus max. drop-out 3,5 m/3 m
Volant Plus motor drive standard
Volant Plus crank drive -

Opal Design II / LED: Good to know before you buy!

Benefit from the experience of our weinor retailers – up-to-date, professional and practical!

What to do when it's freezing?

It is better not to operate the awning in frosty conditions to prevent damaging any frozen components. However, if this is necessary in practice: it is better to keep an eye on the system! So you can stop quickly if something is frozen and prevent any damage. Our tip: Switch off the weather sensors on your product in frosty conditions to prevent it retracting and extending when you are not at home.

And in windy conditions?

Awnings can also withstand higher wind speeds (please see the product data for details). Despite this, it is better to retract the awning before strong winds develop and keep it closed. This reduces the risk of your awning being damaged by strong gusts of wind. If you supplement your system with a wind sensor, it will do this job for you.

It’s best to avoid wetness

The awning’s basic function is to protect against sunlight and heat. It’s better to retract your sun protection when it’s raining. As wet fabrics may develop more wrinkling, water and mildew stains. It is also possible that honeycomb patterns may appear. If your awning does happen to get damp, it is best to extend it to dry out as soon as the weather has improved

Fabrics react to the environment

Fabrics reach to external conditions. If it is dry or damp, warm or cold outside, the awning fabric may shrink or expand – only minimally of course. The size of the system also plays a part. These external factors may cause waves and folds in the fabric. These folds are quite normal though and do not damage the awning.

Avoiding transverse seams

Fabrics are tailored to the system size. As not every type of fabric has the same width, this may result in transverse seams with the optional Valance Plus. This depends entirely on which fabric you choose and what valance length you want. The best thing to do is to contact your weinor retailer beforehand and ask for advice on the most suitable type of fabric.

Wrinkling – no need to worry!

Some irregularities simply cannot be avoided due to environmental and production reasons – for example, creases, bulging and wrinkling due to the different winding diameter on the roller tube. Rippling and overstretching in the seam area or honeycombing may also occur. But we can reassure you: you are dealing with a high-performance fabric – small blemishes do not impair its functionality. They are therefore not a reason for rejection or grounds for complaint. More information at https://www.weinor.com/fabric_qualities.

Quiet but not silent

What one person finds loud and disturbing is barely perceptible to another. This also applies to the creaking noises your product makes. When the temperature changes, your awning’s material expands or contracts – a natural process that cannot be avoided. Noise also occurs when retracting and extending the awning, which can be louder or quieter depending on the building situation. In any case, the creaking and running noises do not affect your awning’s functionality.

Keeping an eye on the product

You should take a closer look at your awning every now and then: does everything look good and is it all firmly in place? If you notice anything wrong, contact your retailer for maintenance. It is advisable to clean your construction at least once a year, or even twice a year in the case of heavy use. Please refer to our “10 tips on awning fabrics” brochure for this.
Our tip: If you are not at home for a longer period of time, retract your awning and simply switch the automatic system to “OFF”. This will avoid the awning from being retracted and extended unsupervised.

The awning that grows with you

If, after installing your awning, you find that you would like to have even more comfort after all, additional products are available within weinor’s modular system and are easy to retro fit. Whether it is an automatic weather system, a heating system, lighting, a new fabric or vertical sun protection for the pergola awning – everything fits perfectly together. The additional options do of course have technical limits. Fortunately, these are just exceptions, which we are working on …

Reliably weather sensitive

Even if you don't have your awning in sight, weather sensors ensure that your radio-controlled awning can automatically extend when the sun is shining and retracts again when it is rainy or windy. As a result, the climate on the patio and indoors remains more pleasant. The risk of water or storm damage to your product can be reduced with the right sensor.

Compensating joints

For an awning to work properly, all the components must work together in harmony. Even minor unevenness on the house wall can mean that awnings do not run as smoothly as they should. weinor awnings react to the condition of the installation surface and compensate for this if necessary. The joints that then appear do not have a negative effect on your awning’s function though – quite the opposite!

Download

Downloads

Downloads

Patio pleasure

Quality awnings for every taste. Here you will find the complete awning range.
Type: PDF
Size: 6 MB
Downloads

Alfresco Comfort & Luxury – weinor accessories for sun and weather protection

Make your time on the balcony or patio even more pleasant with intelligent accessories from weinor.
Type: PDF
Size: 4 MB
Downloads

modern basics blue® – The sustainable awning fabric collection

The weinor fabric collection modern basics blue® comprises 16 beautiful, modern designs, made with 85% recycled PET.
Type: PDF
Size: 3 MB

Radio and colours should be included

Produktstreifen Test Modern Basics Blue

modern basics blue® – The sustainable awning fabric collection

The weinor fabric collection modern basics blue® comprises 16 beautiful, modern designs, made with 85% recycled PET.

Mehr Komfort durch Funksteuerung

More convenience due to radio control

The weinor BiConnect radio control makes operating sun protection, lighting and heating a delight.

Using a pre-programmed BiEasy hand transmitter with or without a display; in silver or black – or even using the BiEasy app. The solar sensor enables the awning to extend automatically - regardless of whether you are at home or not. This means that you will always have a pleasant, cool climate on your patio even in the case of blazing heat.

Or you might want to opt for Somfy io-homecontrol® or RTS instead - the choice is yours.

Tücher: Beste Qualität und große Vielfalt

Fabrics: Best quality and a wide range

The new weinor fabric patterns add an aesthetically pleasing look to your patio!

Teflon EXTREME® finishing makes weinor fabrics water and dirt repellant. What's more, the solution dyeing process, which locks the pigment into the fibres, gives them their long-lasting brilliant colour.

Gestellfarben: made by weinor

Frame colours: made by weinor

An immense range of cutting-edge frame colours

The magnificent nuances from weinor will colour your life. Everyone is certain to find their favourite colour here: with over 200 different rack colours from weinor to choose from. Let us inspire you!

As weinor does all the powder coating in its own workshop, you can also rest assured that different weinor products come with the same top-class colour tonality and identical gloss level.

Echtheitszertifikat Logo

weinor certificate of authenticity -
an original product with certainty

Every weinor product has been delivered with a certificate of authenticity since January 2018.
Ask your retailer for it!
