Tragender Wandanschluss

Supporting Wall Connection Frame

For the reliable installation of patio roofs and pergola awnings on difficult facades

Facades and walls are always different in nature. Some are not suitable for supporting heavy loads, such as patio roofs or pergola awnings. Installation on timber-framed, brick or plaster facades with thermal insulation as well as prefabricated houses with timber framework is often challenging. weinor has the right solution here too! With the Supporting Wall Connection Frame you can also mount your weather protection on difficult surfaces – quickly, safely and attractively.

Tragender Wandanschluss

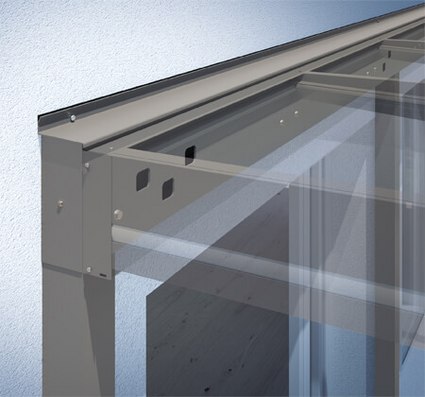

At a glance

Checkmark

Top stability and strength

Checkmark

Made of high-quality aluminium – no material mix

Checkmark

Reliable impermeability at the joins

Checkmark

Supporting Wall Connection Frame and add-on product technically matched to each other

Checkmark

In-house powder coating ensures colour uniformity

Product-Highlights

Clever problem solvers

With the Supporting Wall Connection Frame you can now mount all Terrazza patio roofs as well as the weinor PergoTex II pergola awning safely on difficult facades too.

Solid, reliable and stable

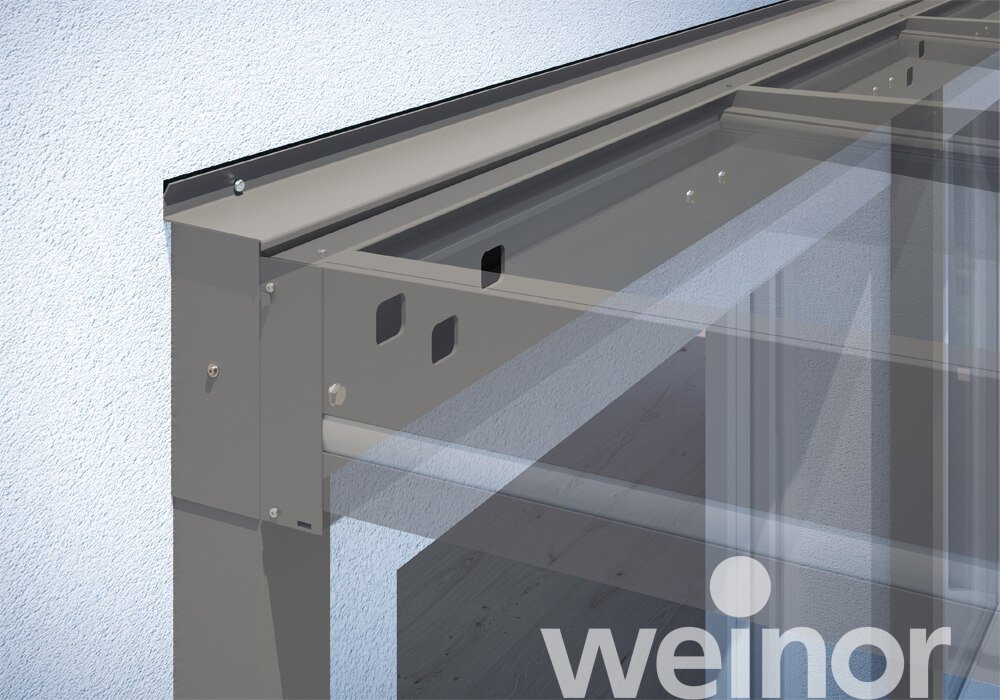

The Supporting Wall Connection Frame is mounted on the brickwork at the top by the crossbeam and on the floor at the bottom. As a result, it safely absorbs the forces of the attached weather protection and relieves the load on the facade.

Attractive

The Supporting Wall Connection Frame and respective add-on products are made of high-quality aluminium with the same powder coating. This avoids an unsightly mix of materials.

Flexible middle post

For larger systems, it is possible to place the middle post flexibly and therefore inconspicuously.

Supporting Wall Connection Frame Picture Gallery

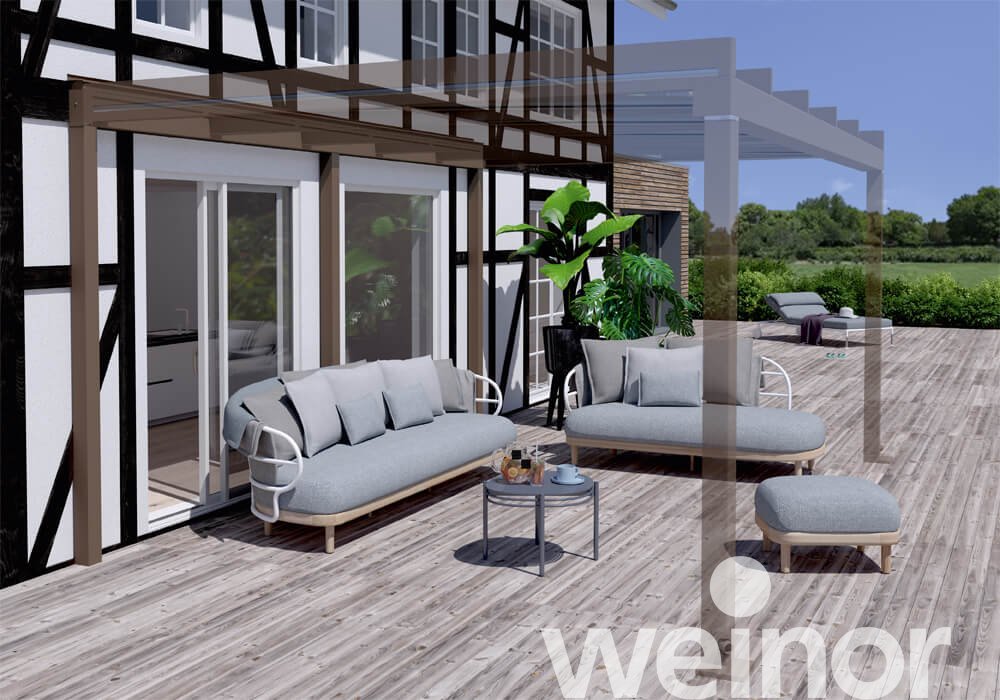

Supporting Wall Connection Frame and Terrazza Pure
Supporting Wall Connection Frame and Terrazza Pure

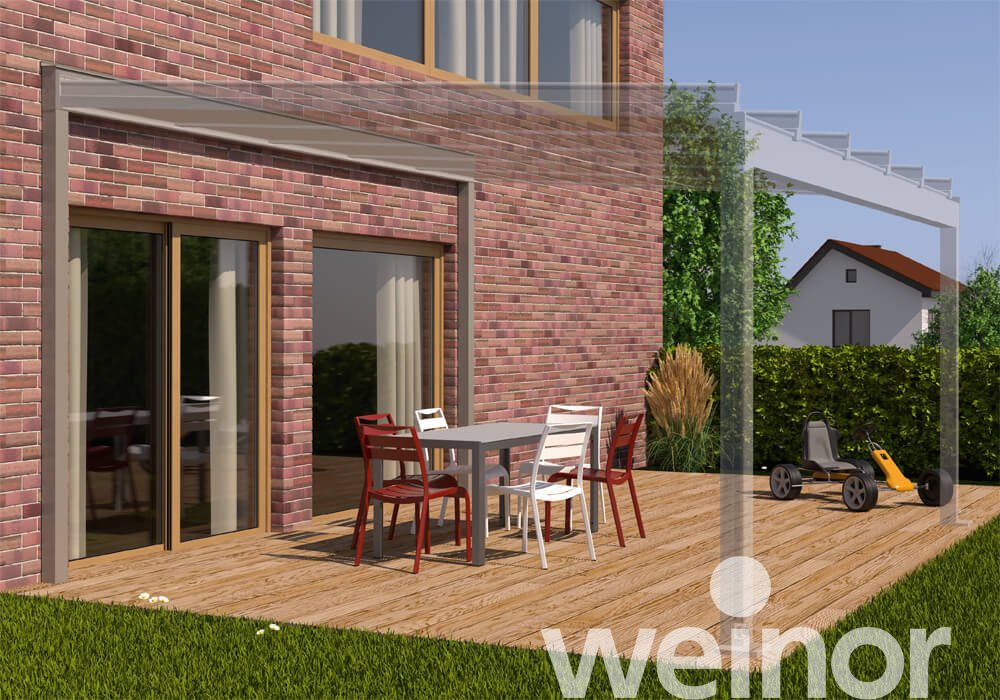

Supporting Wall Connection Frame and Terrazza Sempra

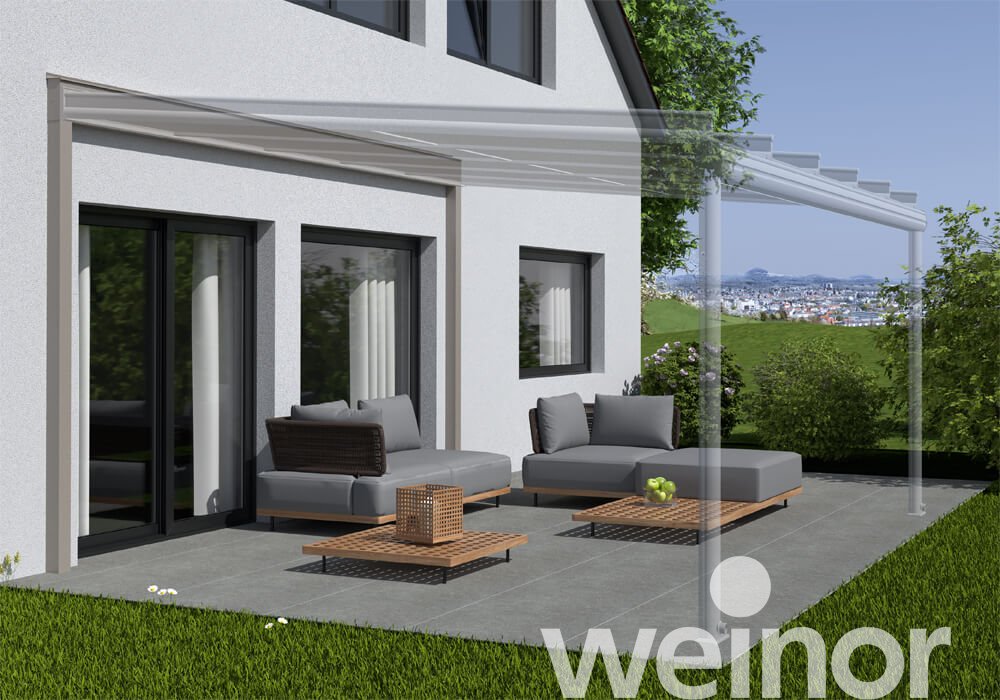

Supporting Wall Connection Frame and Terrazza Originale

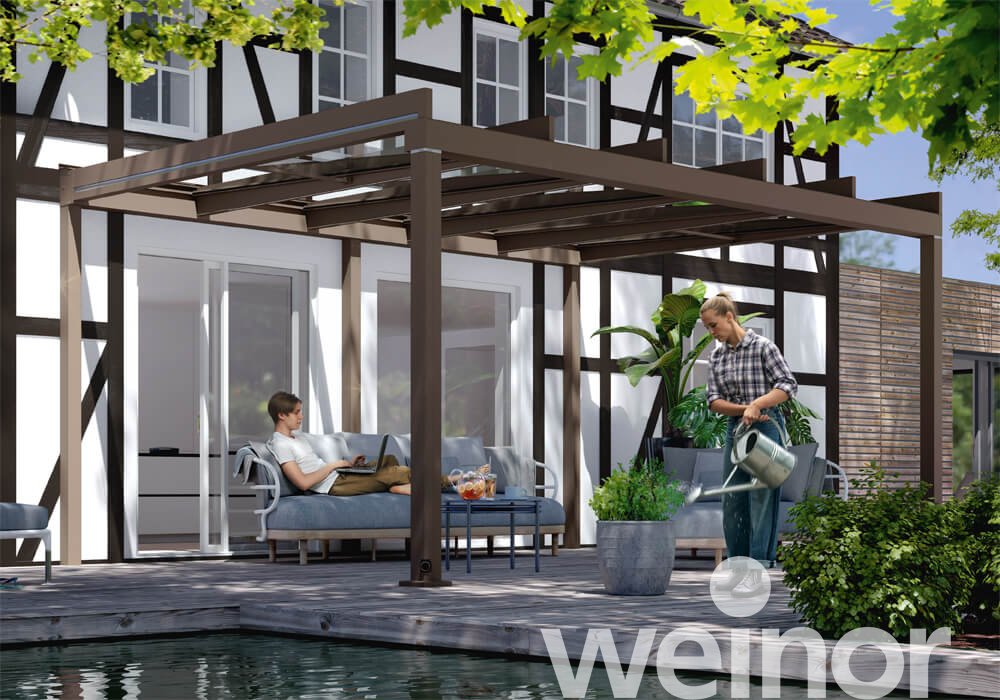

Supporting Wall Connection Frame and weinor PergoTex II

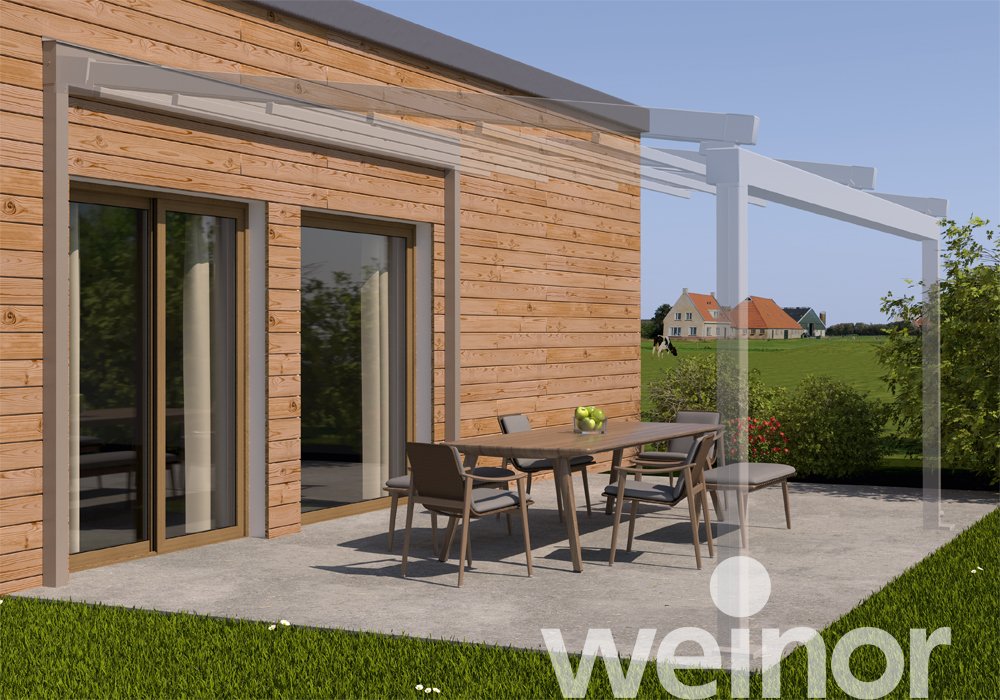

Supporting Wall Connection Frame

Product data

Max. width (one-piece) 7,0 m
Max. width (two-piece) 14,0 m
Standard post length Up to 2.95 m/longer posts on request
Post span Max. 5.0 m without middle post (depending on roof size and snow load)
Possible add-on products Terrazza Pure, Terrazza Sempra, Terrazza Originale, weinor PergoTex II
Depth of add-on product Terrazza patio roofs 4.0 m – 4.5 m; weinor PergoTex II 6.5 m
