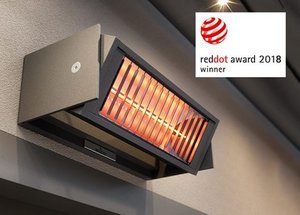

Tempura heating system – small heater, big output

You extend your precious time on the patio with the weinor Tempura and Tempura Quadra heating systems. They can be mounted almost anywhere, are easy to retrofit and generate pleasant warmth. The infrared rays can be felt as soon as the system is switched on. The heater is available in a round version as well as the Tempura Quadra with square design.

You’re not just protecting your wallet with the infrared technology used by weinor. In comparison to other heating technology, the heat can be felt instantly.

Infrared technology: efficient and pleasant

The Tempura/Tempura Quadra running costs are significantly lower than with conventional heating systems, such as gas.

In comparison to electrical quartz heaters, the weinor infrared heating technology only warms up the skin and not the air in between.

Resulting in maximum heat emitted straight after they are switched on.

Tempura/Tempura Quadra: a summary of your benefits

  • Instant heat without any delay thanks to infrared technology
  • 91% efficient due to the concentrated radiation thanks to strong reflectors
  • Can be retrofitted at any time to complement existing weinor products or even for other patio systems
  • Can be used virtually everywhere or mounted directly onto weinor Opal Design II (Tempura and Tempura Quadra) and Semina Life (just Tempura) awnings
  • More than 200 frame colours available
  • Fine-tuned dimmer function by radio using a hand transmitter or with a Smart Home app by smartphone or tablet, on-off function also possible with wall switch

Tempura and Tempura Quadra are developed and produced in Germany.

Technical data

Tempura Quadra
Output 1.500 Watts*
Power supply/frequency 230 V / 50 Hz
Filtered light up to 99%, extremely low-glare
Heating technology infrared radiation, instant heat
Controls weinor BiConnect/Somfy (integrated in the housing of the heater)
Hard wired control connected on site to existing supply
Tempura
Output 1.500 watts*
Power supply/frequency 230 V / 50 Hz
Filtered light up to 95%, extremely low-glare
Heating technology infrared radiation, instant heat
Controls weinor BiConnect/Somfy (integrated in the external design bar housing)
Hard wired control connected on site to existing supply

* Two Tempura can usually be connected with a standard household 16 amp fuse.
